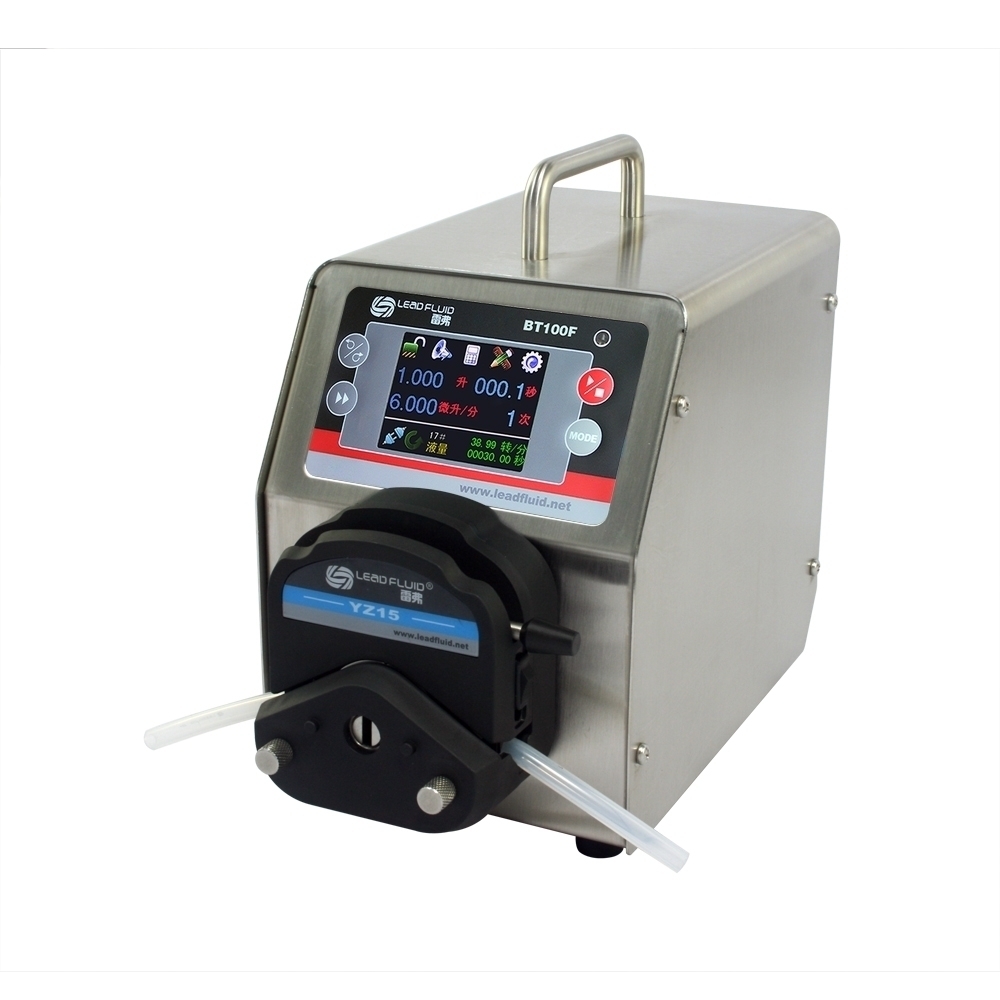

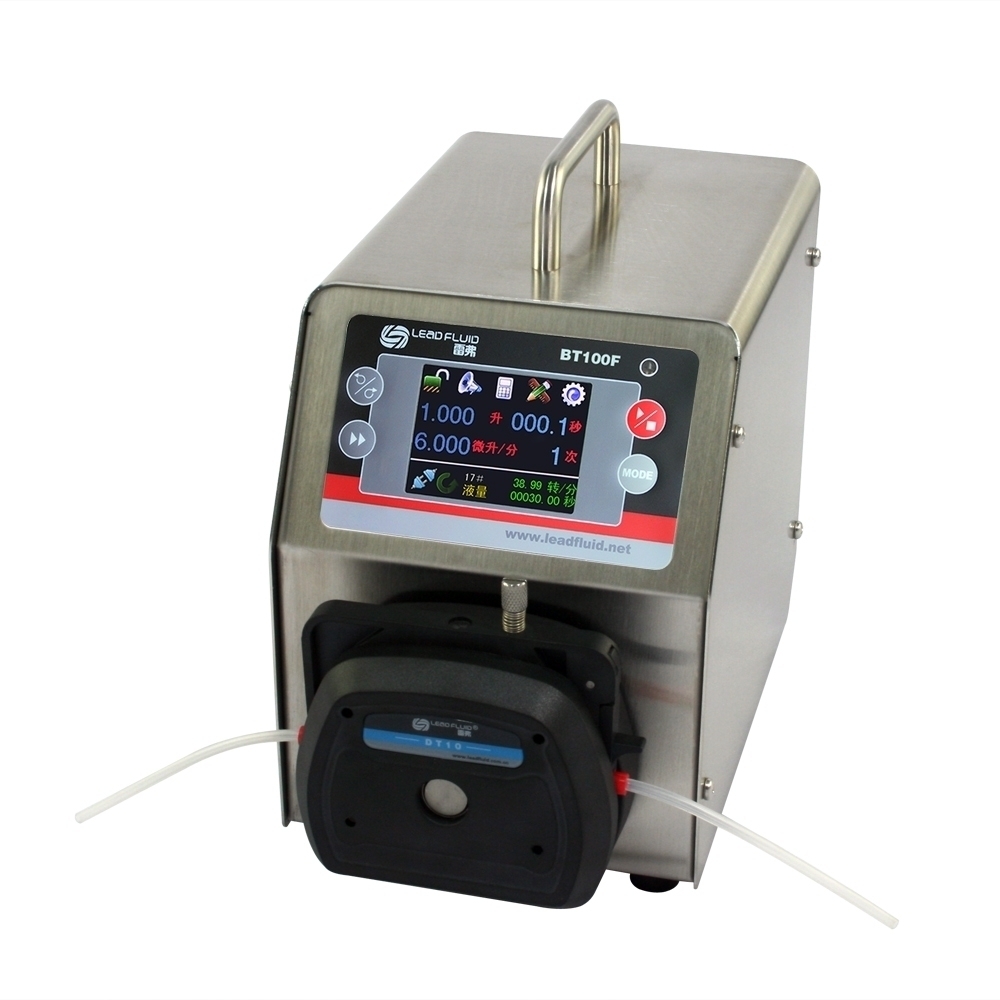

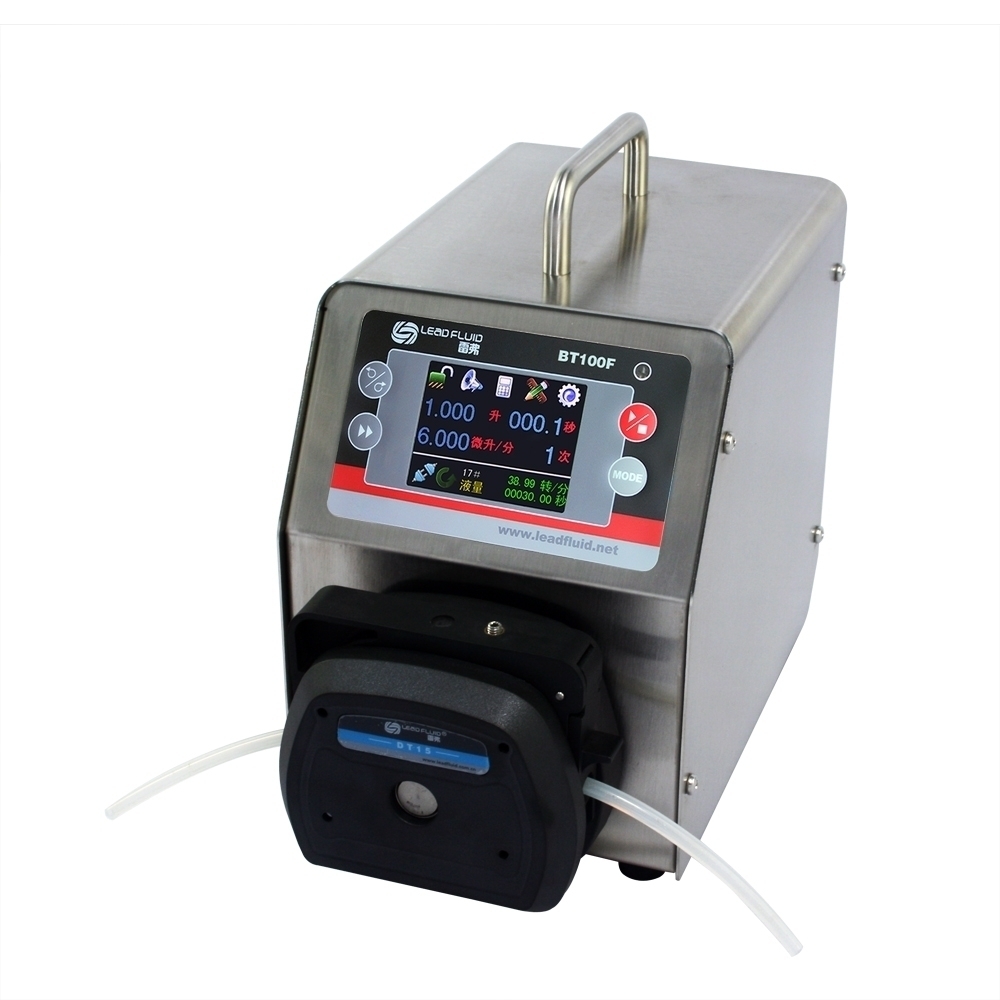

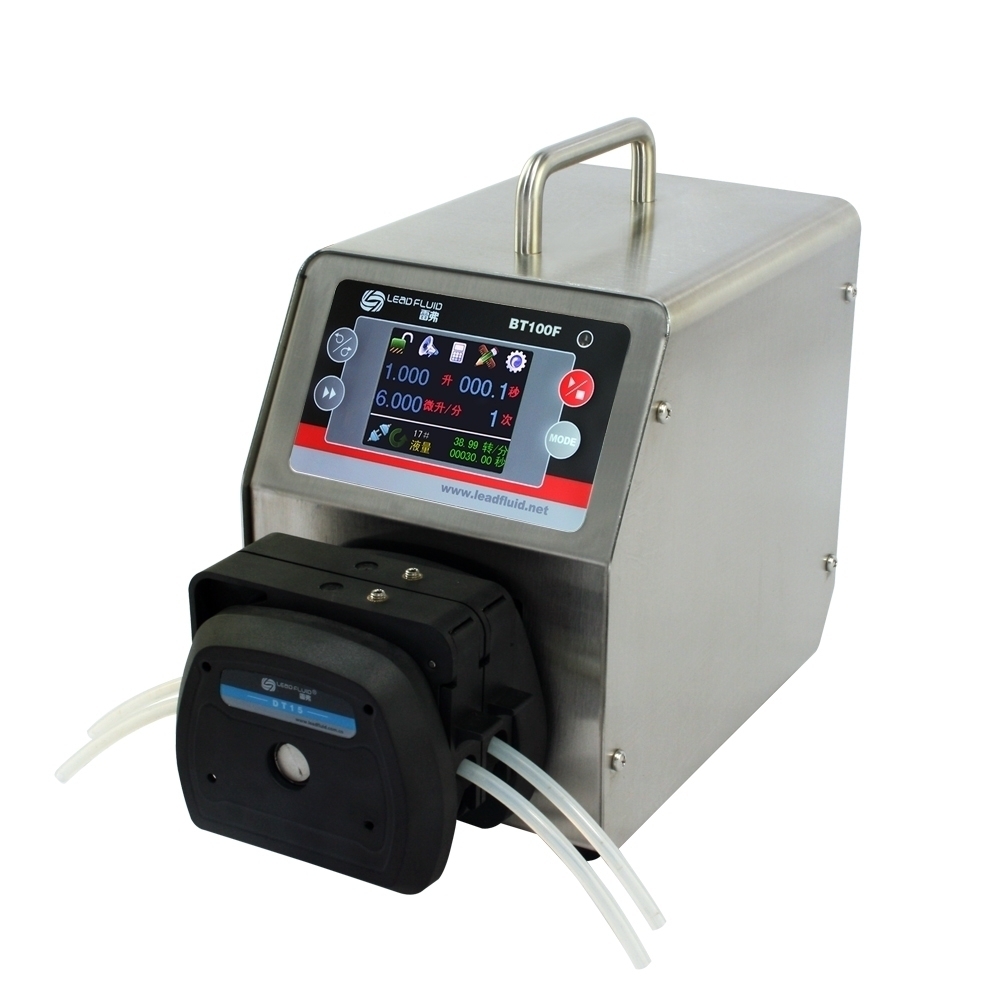

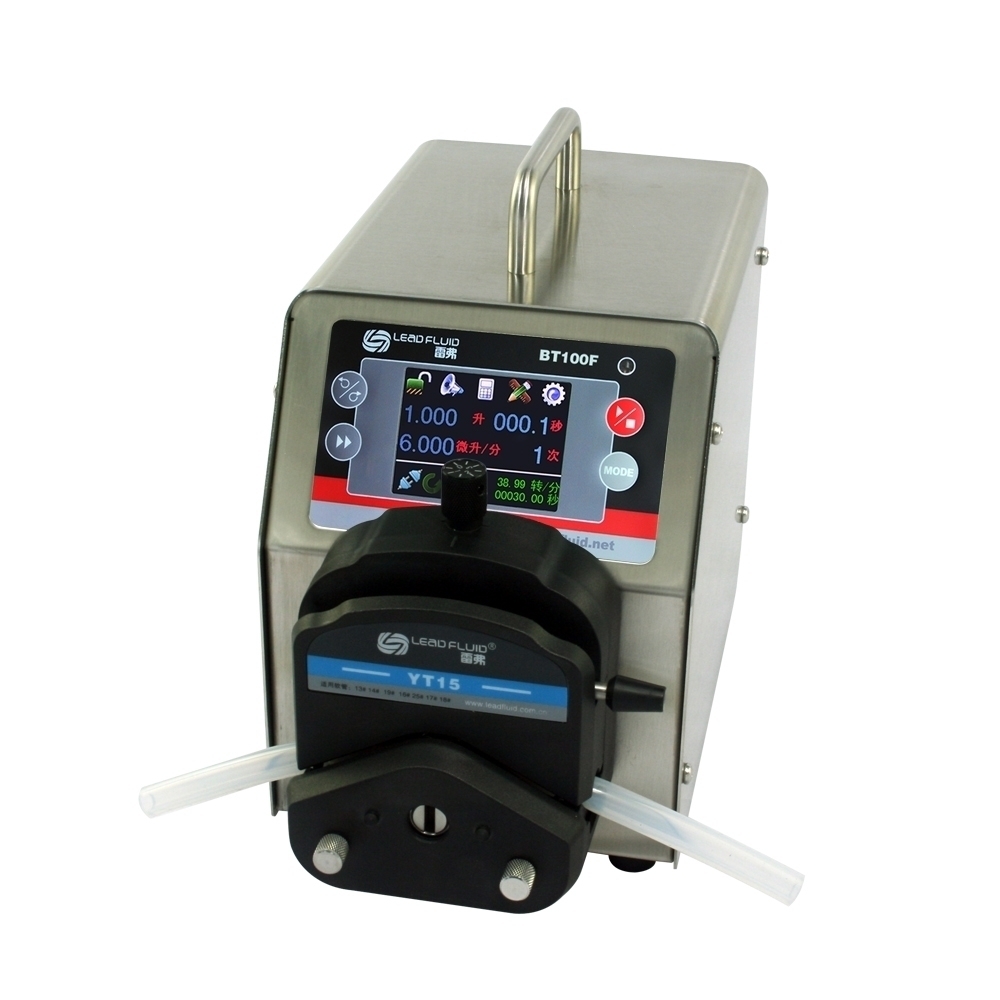

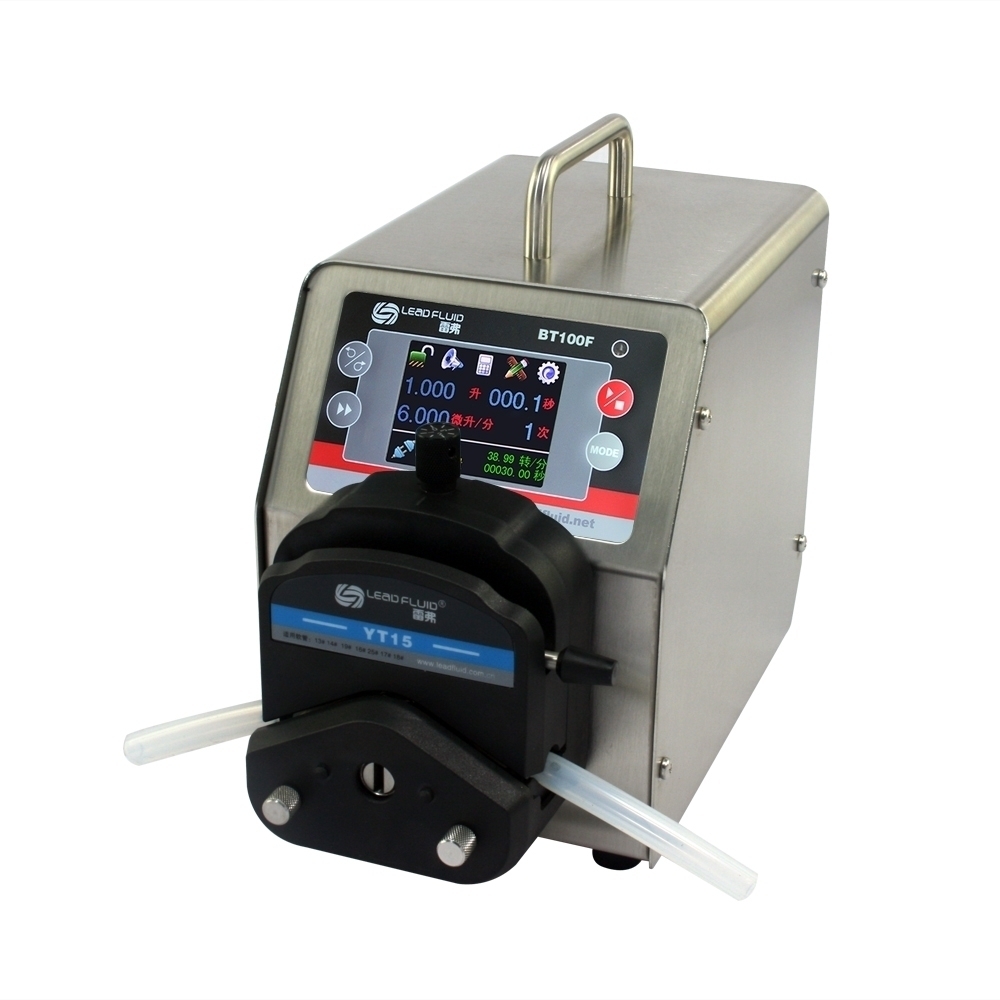

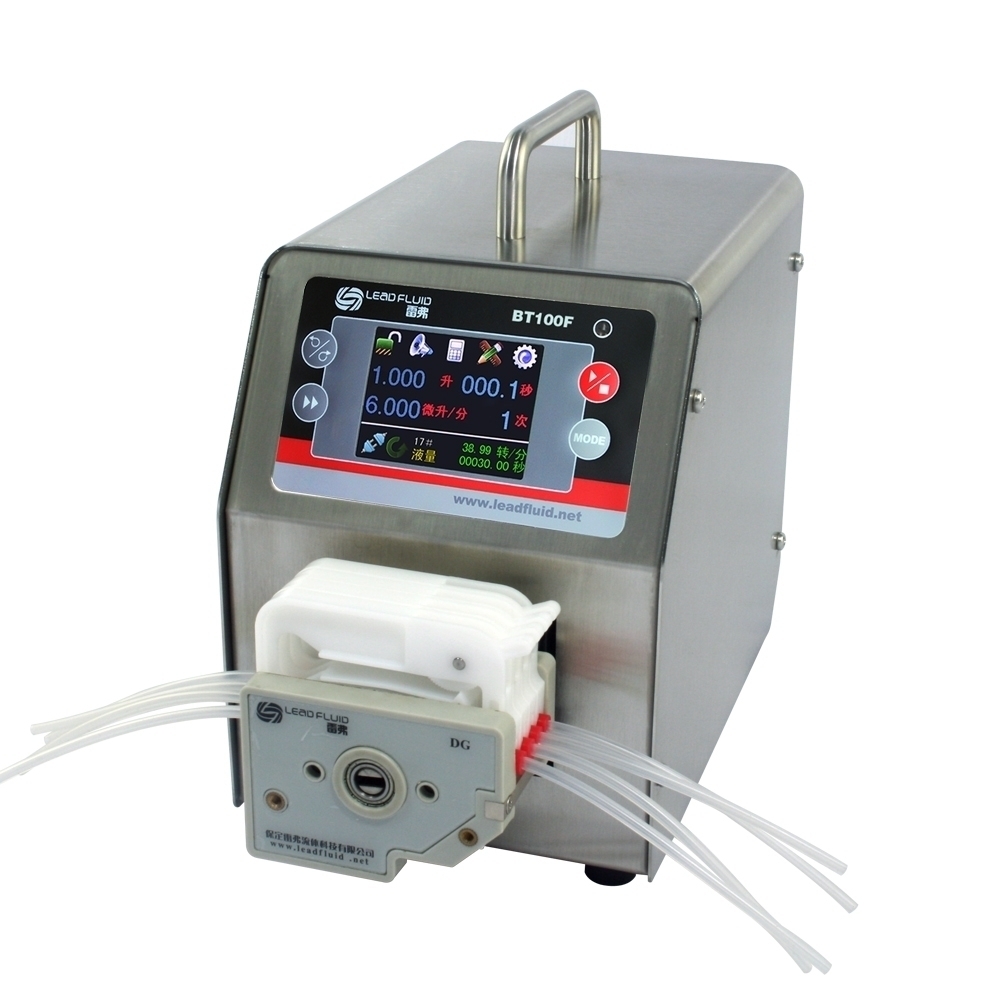

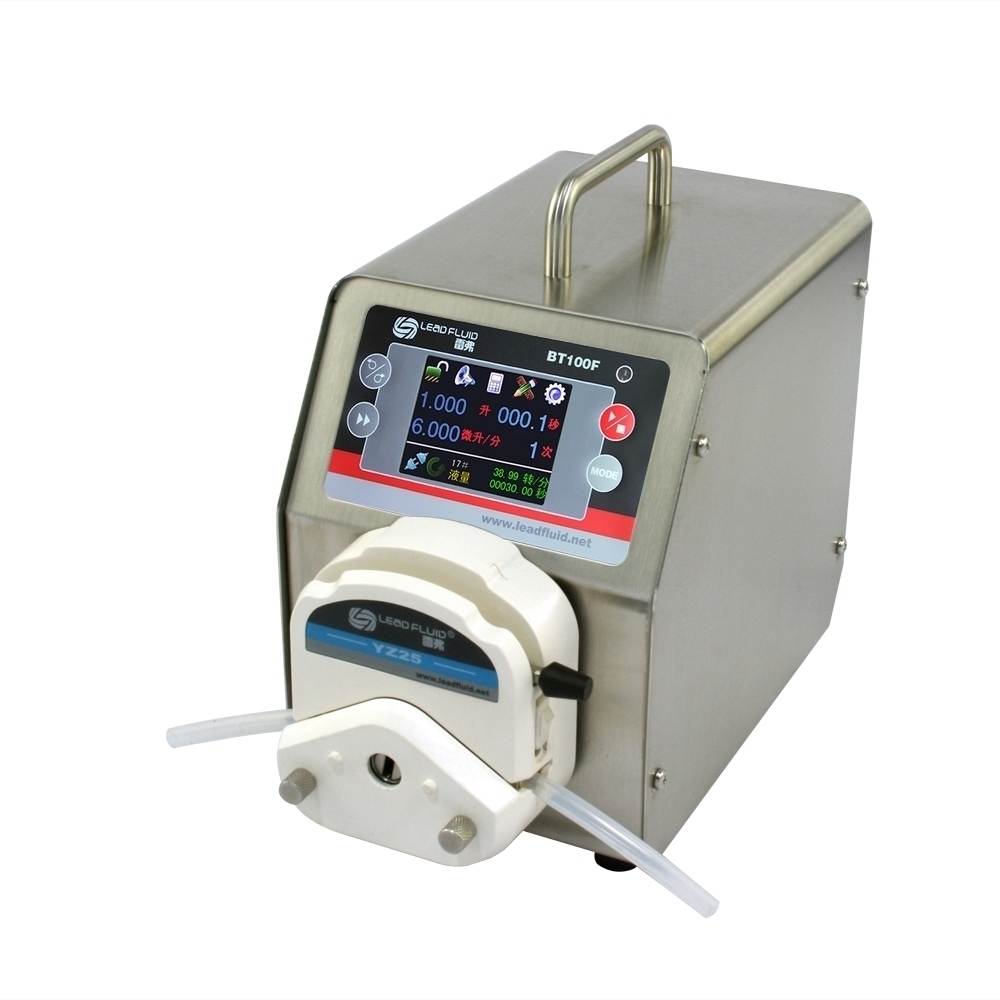

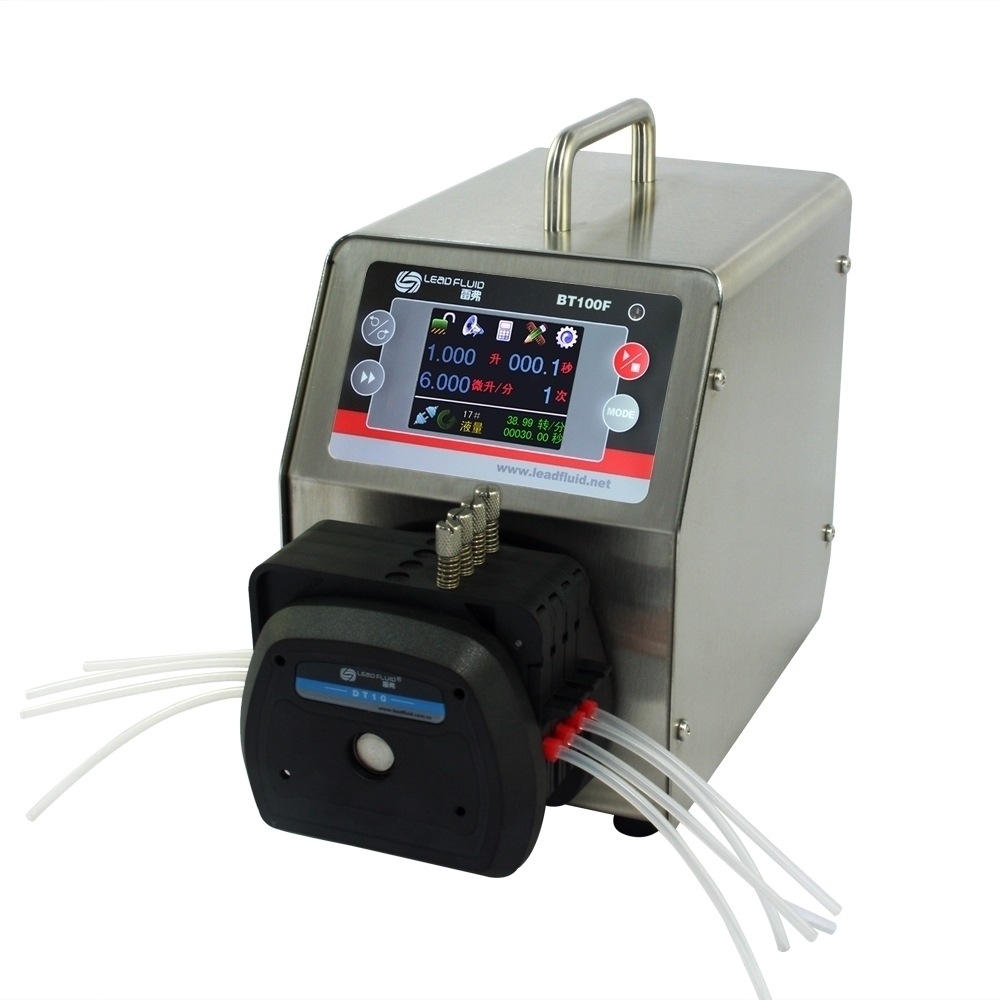

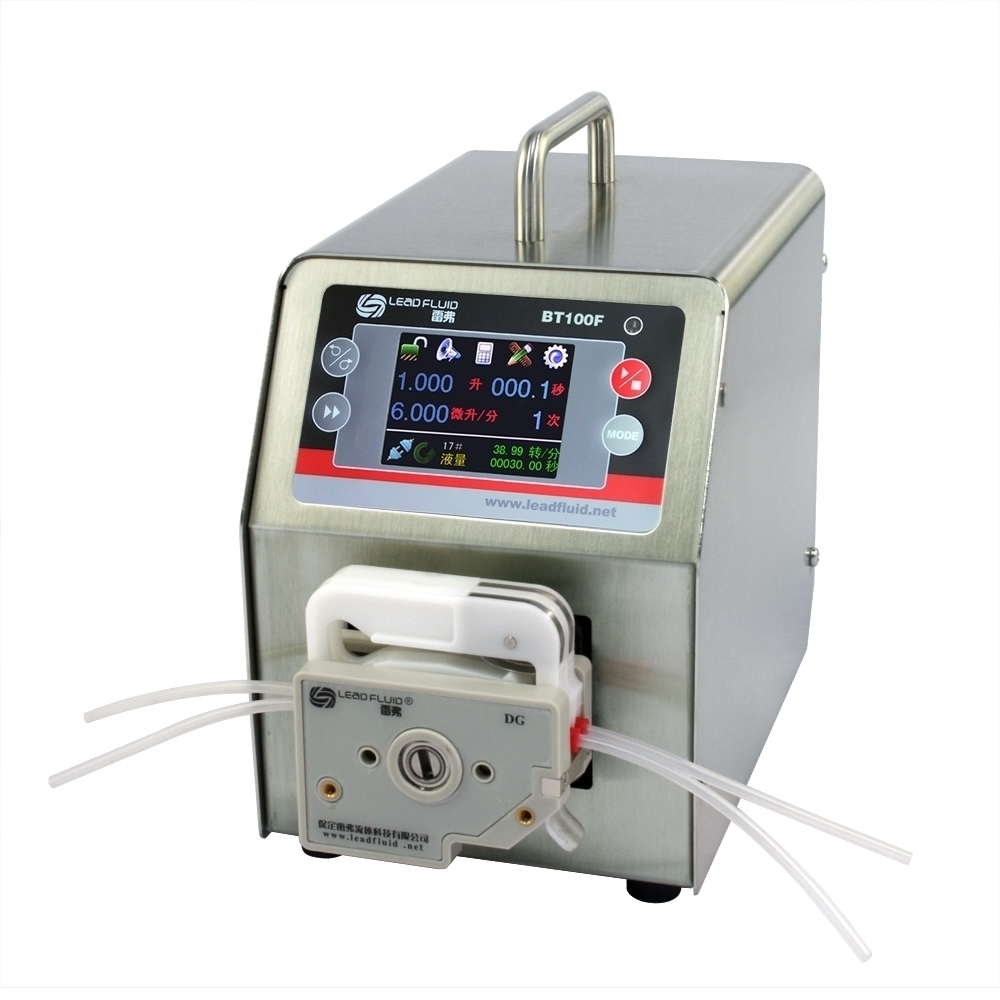

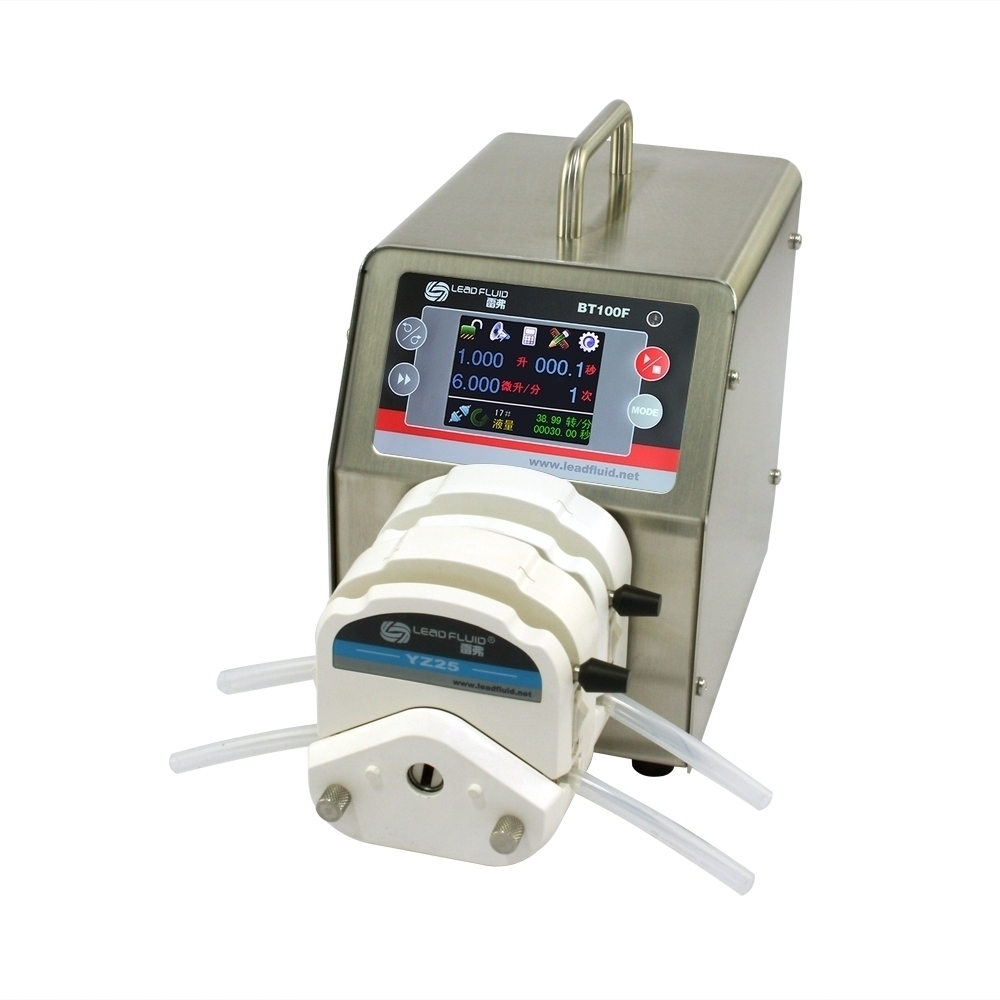

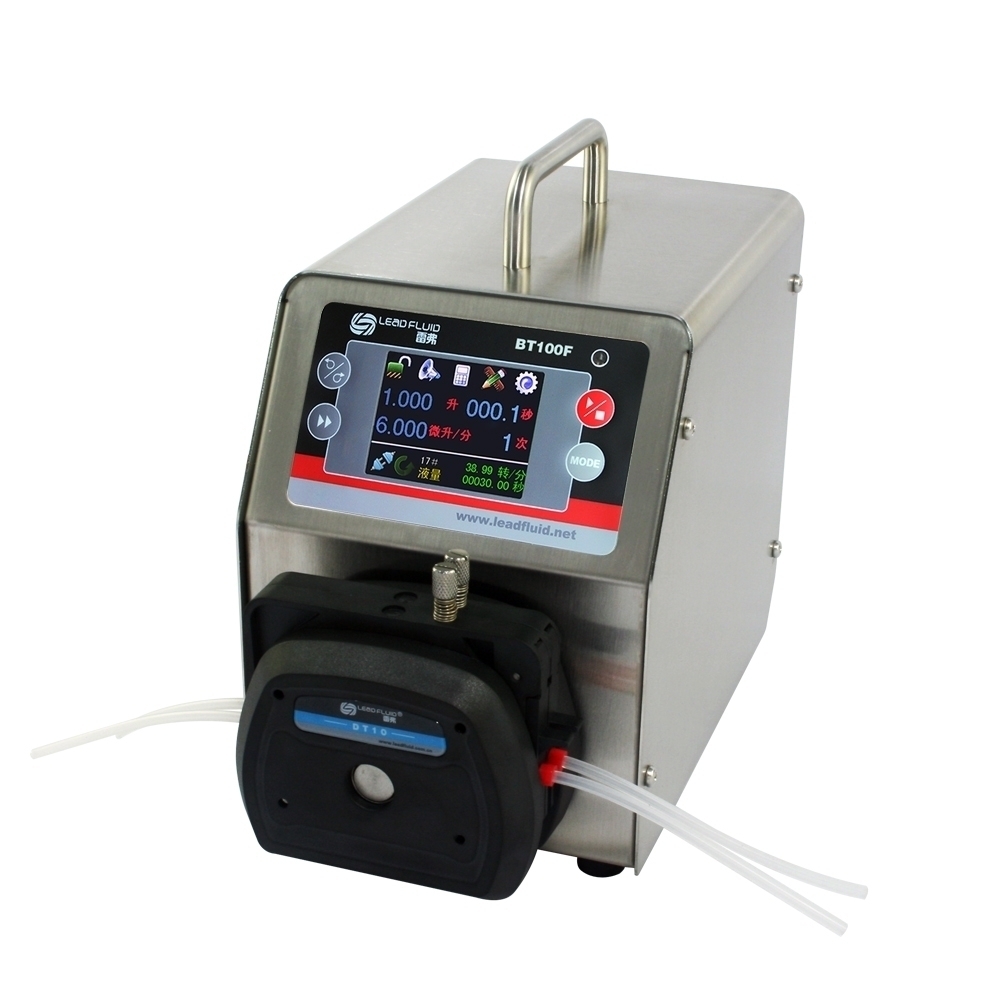

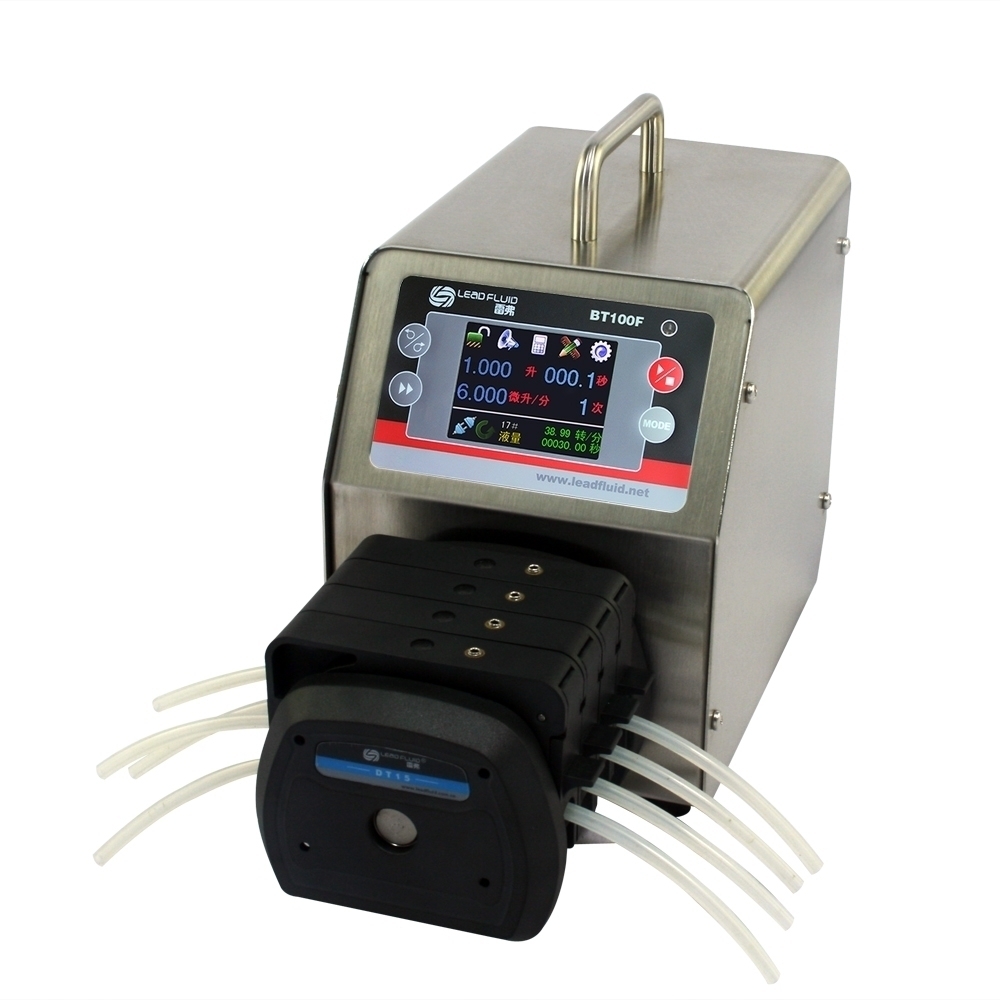

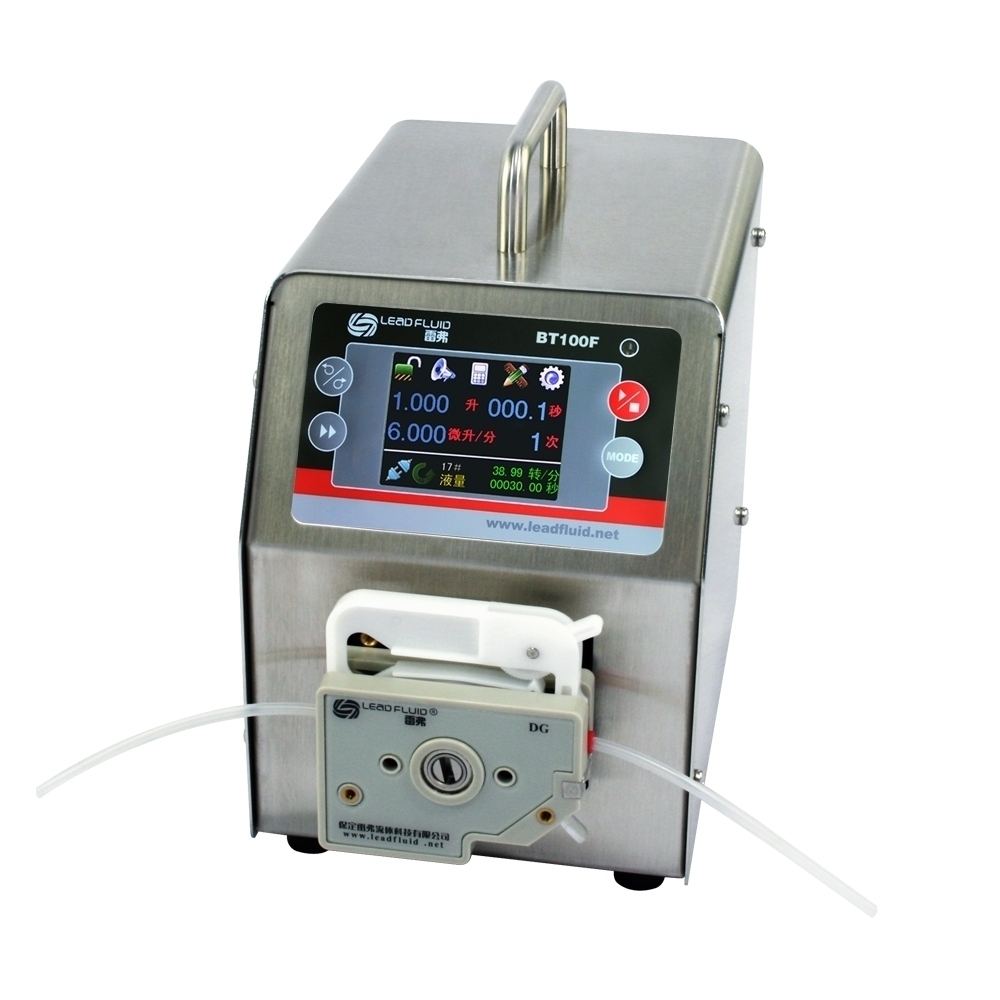

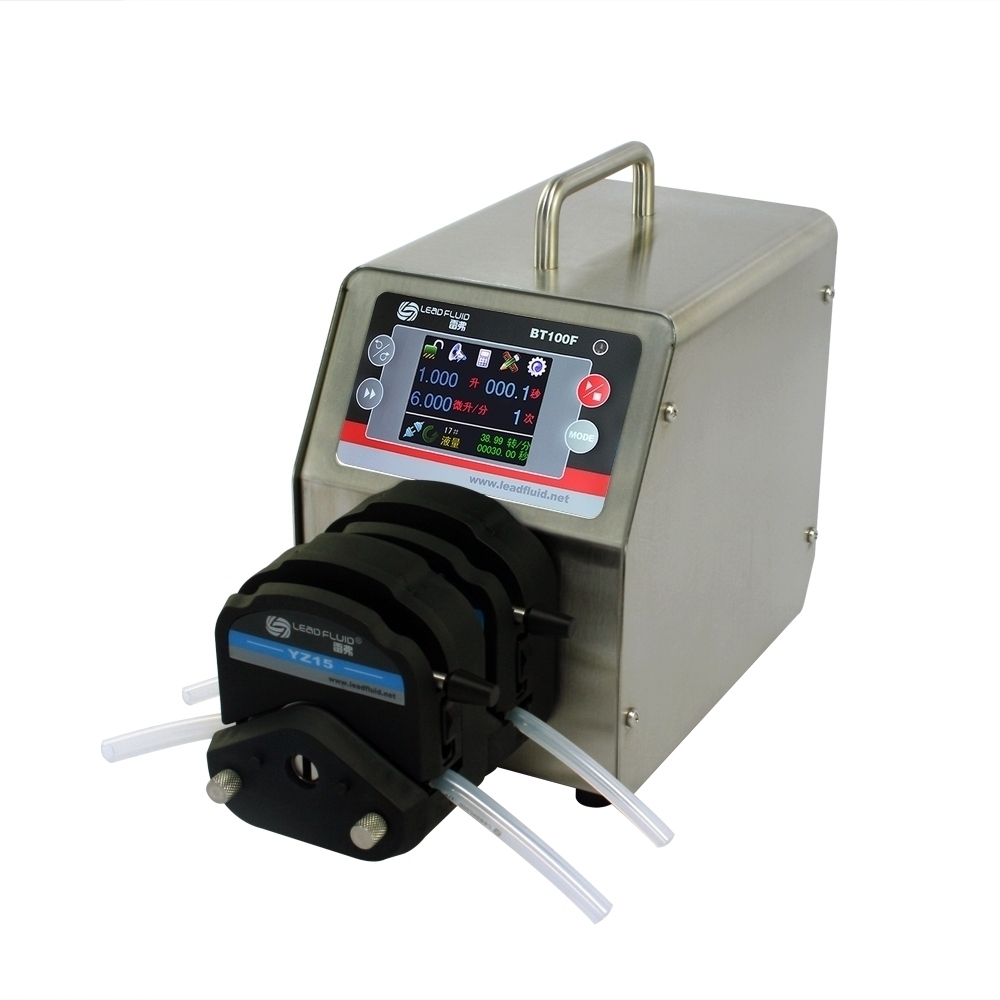

BT100F Dispensing Peristaltic Pump

Functions and Features

• Color LCD display, touch screen and keypad for operating.
• Reversible direction, start/stop control and adjustable speed.
• Precise motor control technology improves dispense accuracy compared to the traditional time dispense mode.
• Anti-drip function ensures dispense accuracy.
• Three dispense modes available. Time Dispense Mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. Volume Dispense Mode: automatically dispense by setting the volume for each dose, lag time between doses and number of cycles. Copy Dispense Mode: automatically dispense by setting the total volume need to dispense, lag time between doses and number of cycles.
• Store five groups of working parameters for each dispense mode (power-off memory).
• Flow rate display and control; cumulative dispense volume display.
• Flow rate calibration.
• 0.2% high precision rotating speed control with 0.1 rpm speed resolution. Professional operating system. Configure system with setup wizard.
• Intelligent temperature control to minimize working noise.
• External logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
• With RS485 MODBUS interface.
• Internal double-layer isolation structure, circuit board with conformal coating make the pump dust-proof and moisture proof.
• Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
• Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
• Drive multi-channels and variable pump heads.
• Optional footswitch and remote infrared control.

Specifications

• Flow range: 0.00011-720 mL/min
• Speed range: 0.1-150 rpm
• Speed resolution: 0.1 rpm
• Speed accuracy: 0.2%
• Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
• Power consumption: <40W
• External logic level control signal: 5V, 12V (standard), 24V (optional)
• External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
• Communication interface: MODBUS RS485
• Operating condition: Temperature 0-40°C; Relative humidity <80%
• IP grade: IP31
• Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
• Weight: 4.8 kg ( 10.6 lbs)

BT100F Suitable Pump Heads and Tubing, Flow parameters
