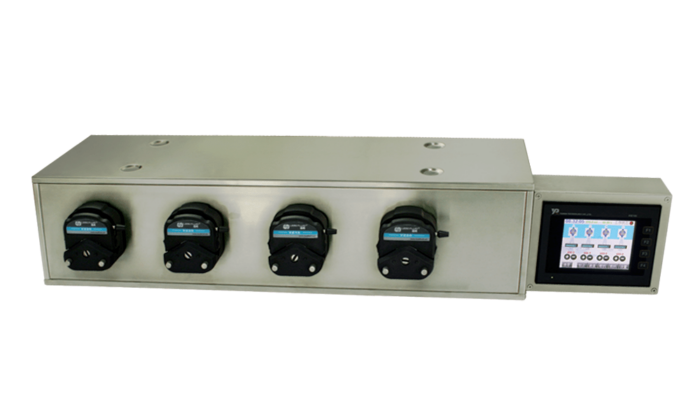

Function and Feature
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid、alkali、sodium and the organic solvents.
• Color LCD touch screen with intuitive and clear displaying interface, easy to operate.
• Unique intelligent calibration system, greatly reducing the workload of users and improving efficiency.
• Can cascade for more channels
• Applicable pump head: YZ15, YZ25
• Volume range: 0.1-500 ml/min.
• Dispensing time: 0.1-99.99 second.
• Dispensing accuracy: up to 0.5%.
• Speed resolution: 0.1rpm.
• Fine adjustment on line, it is convenient for users adjusting flow rate as tubing’s aging.
• With offline and online function for each channel.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Each channel will stop working when lack of the bottle.
Technical parameters
• Technical parameters： DS600-6
• Filling range(mL)： 0.5-500
• Speed range(rpm)： 0.1-600
• Speed resolution(rpm)： 0.1
• Flow accuracy： <0.5%
• Power supply： AC220V ± 10% 50Hz/60Hz(standard ) ；
AC110± 10% 50Hz/60Hz(optional)
• Power consumption： <240W
• External control ： External bottle-lack signal and start signal
• Communication interface： RS485 communication interface, MODBUS protocol is available.
• Operating condition： Temperature 0 -40 °C; Relative humidity <80%
• IP grade： IP31
• Dimensions(LxWxH)： 940x230x247(mm)
• Weight： 25kg
