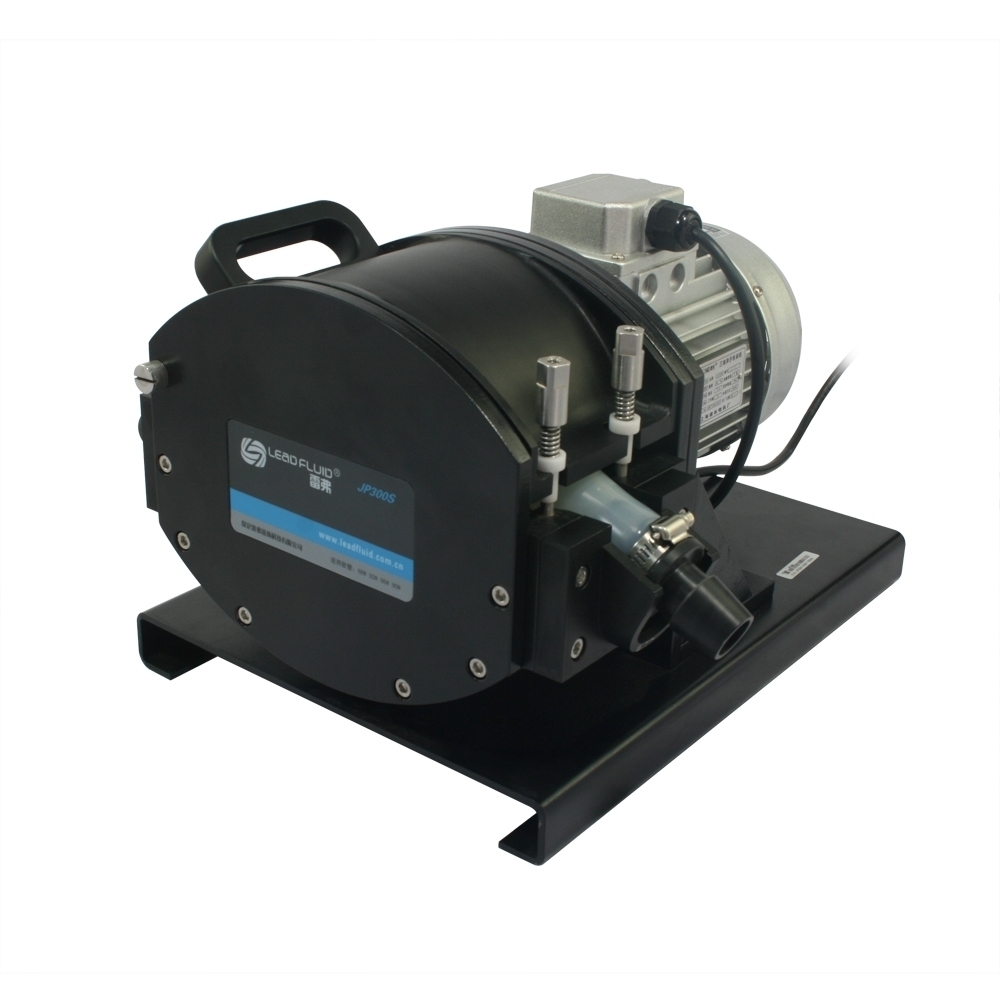

Function and features
• Flow range is wide, can reach 2m3/hour, suitable for batch transferring.
• The pressure of transmission is high, suitable for massive viscosity and high-lift materials.
• It adopts planetary gear design, safe and reliable, with high-power.
• roller driving force rotation，rolling friction with tube，prolong tubing life.
• Press tube gap is adjustable.
• AC motor with frequency control of motor speed control, it can be achieved networking operation with PLC, IPC and computer.
Specification:
1、Flow rates: Maximum 35L/min, can reach 2m3/hour
2、Suitable tubing: 88# 92#；191# 193#
3、Shall material: aluminium alloy
4 Roller: 304 Stainless steel
5、Speed range: 30-300rpm
6、Gap adjustment: adjustable
7、Operating condition: temperature 0 – 40℃
8、Chemical compatibility: resist acid-base,organic solvent.
9、Power supply: AC 220V ±20%/400W
| Tubing Size | ID (mm) | OD(mm) | Wall Thickness(mm) | Suitable Pump Head |
| 88# | 12.7 | 22.3 | 4.8 | PL48 |
| 92# | 25.4 | 35 | 4.8 | |
| 193# | 9.5 | 19.1 | 4.8 | |
| 191# | 19 | 31.6 | 4.8 |
