Functions and Features
- Stainless steel housing.
- keypad controls running speed, reversible direction, start/stop, full speed, easy operation.
- Four digits LED indicator displays working speed.
- Brushless motor drive, maintenance free.
- Stainless steel housing, easy to clean, excellent resistance to corrosion of the acid,alkali, sodium and organic solvents.
- The circuit board with conformal coating makes it dust-proof and moisture-proof.
- External on/off voltage signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator. External analog signal adjusts the rotating speed.
- With RS485 MODBUS interface, easy to be controlled by external devices.
Specifications
- Flow range (mL/min): 0.4-13 L/min
- Speed range (rpm): 30-600
- Speed resolution (rpm): 1 rpm.
- Flow accuracy: 3%
- Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
- Power consumption: < 400W
- External control: Input level 5V, 12V (standard), 24V (optional)
- Communication interface: RS485 MODBUS interface
- Operating condition: Temperature 0~40°C; Relative humidity < 80%
- IP grade: IP31
- Dimensions (L x W x H): 340 x 235 x 175 mm (13.4 x 9.3 x 6.9 inch)
- Weight: 13 kg (28.7 lbs)
WG600S Applicable Pump Heads and Tubings, Flow Parameters
| Drive type | Pump head | CH | Tubing size (mm) | Flow rate (L/min) per channel |
| WG600S (304SS) |

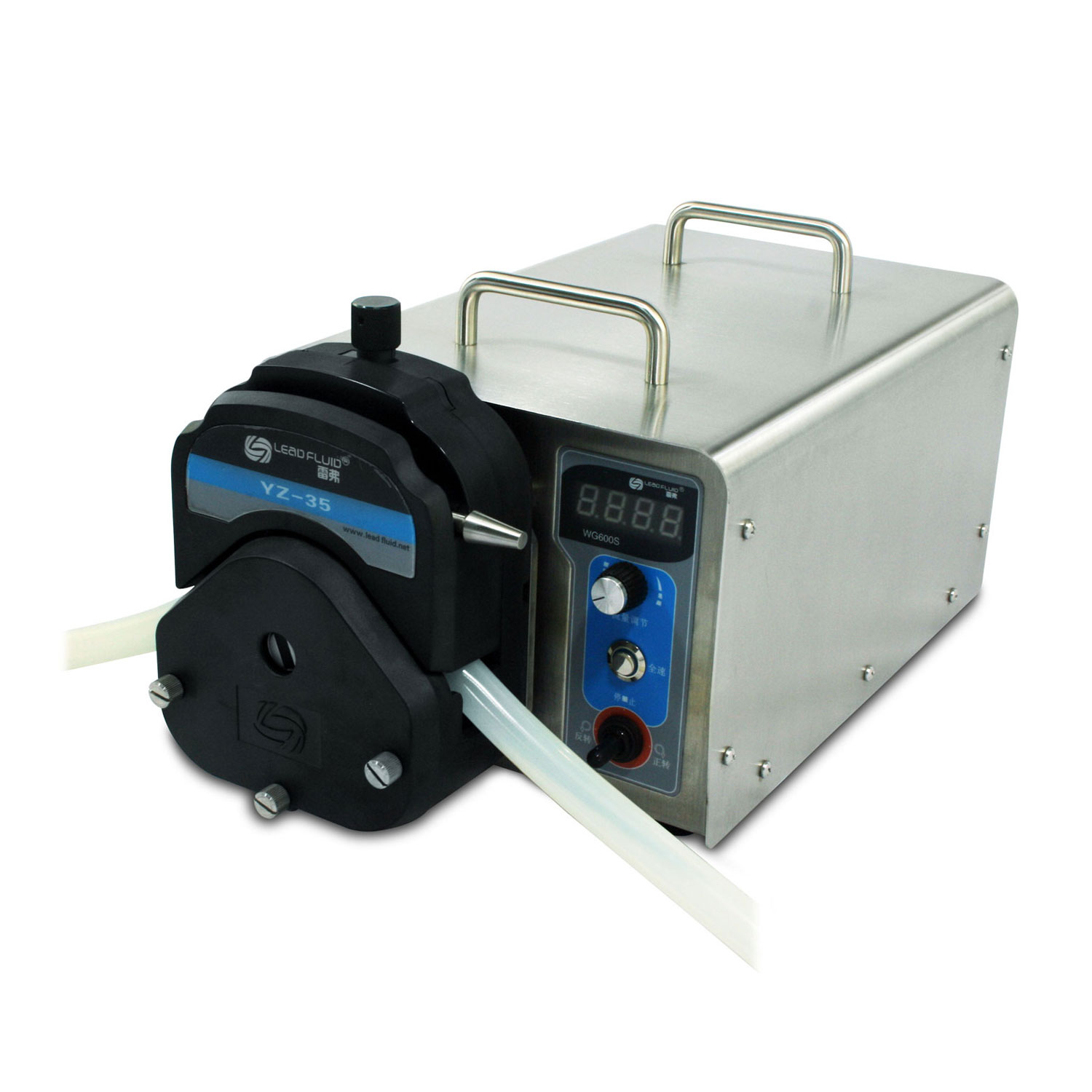

YZ35 | 1 | 73# 82# | 0.4- 13 |

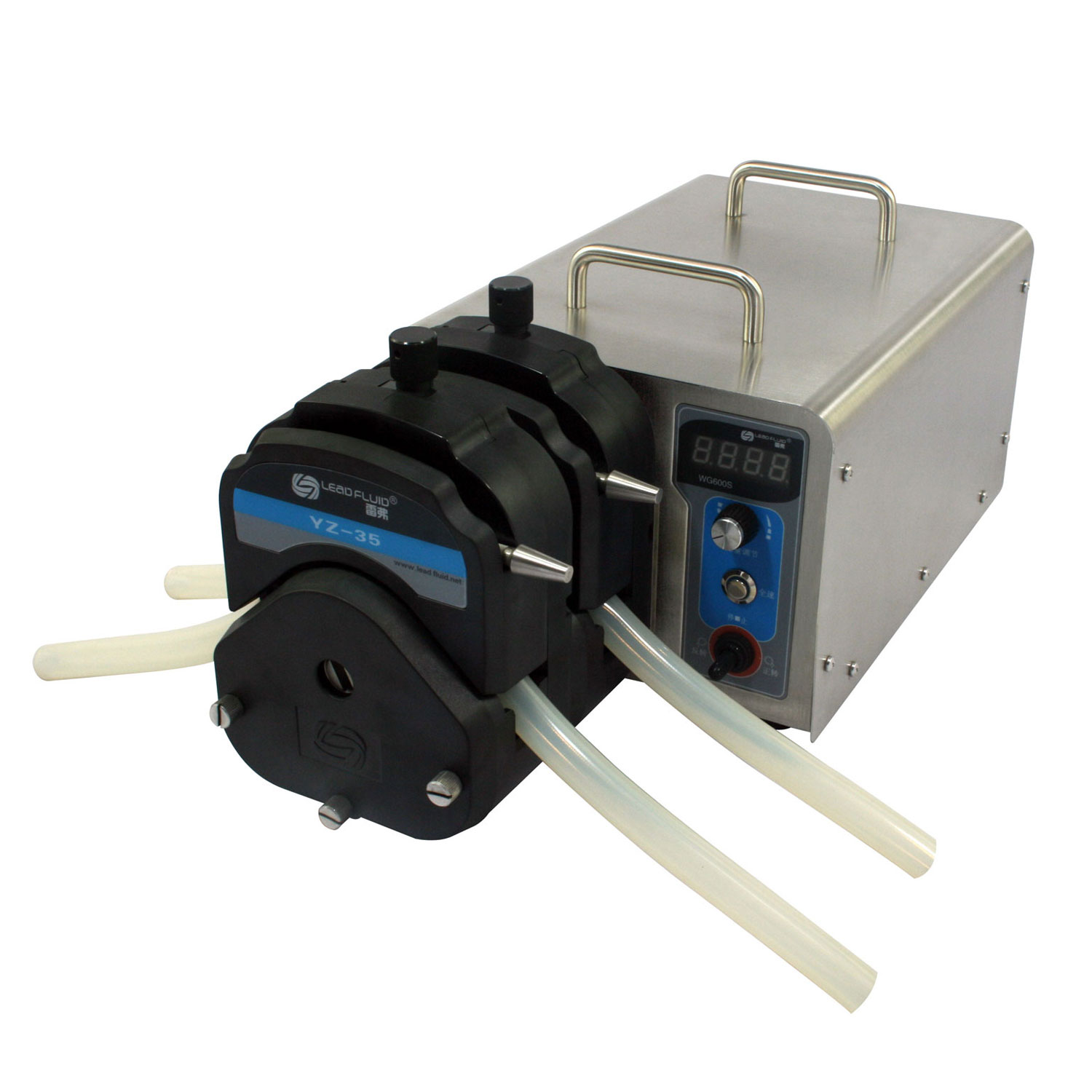

| 2 x YZ35 | 2 | 73# 82# | 0.4- 13 |
