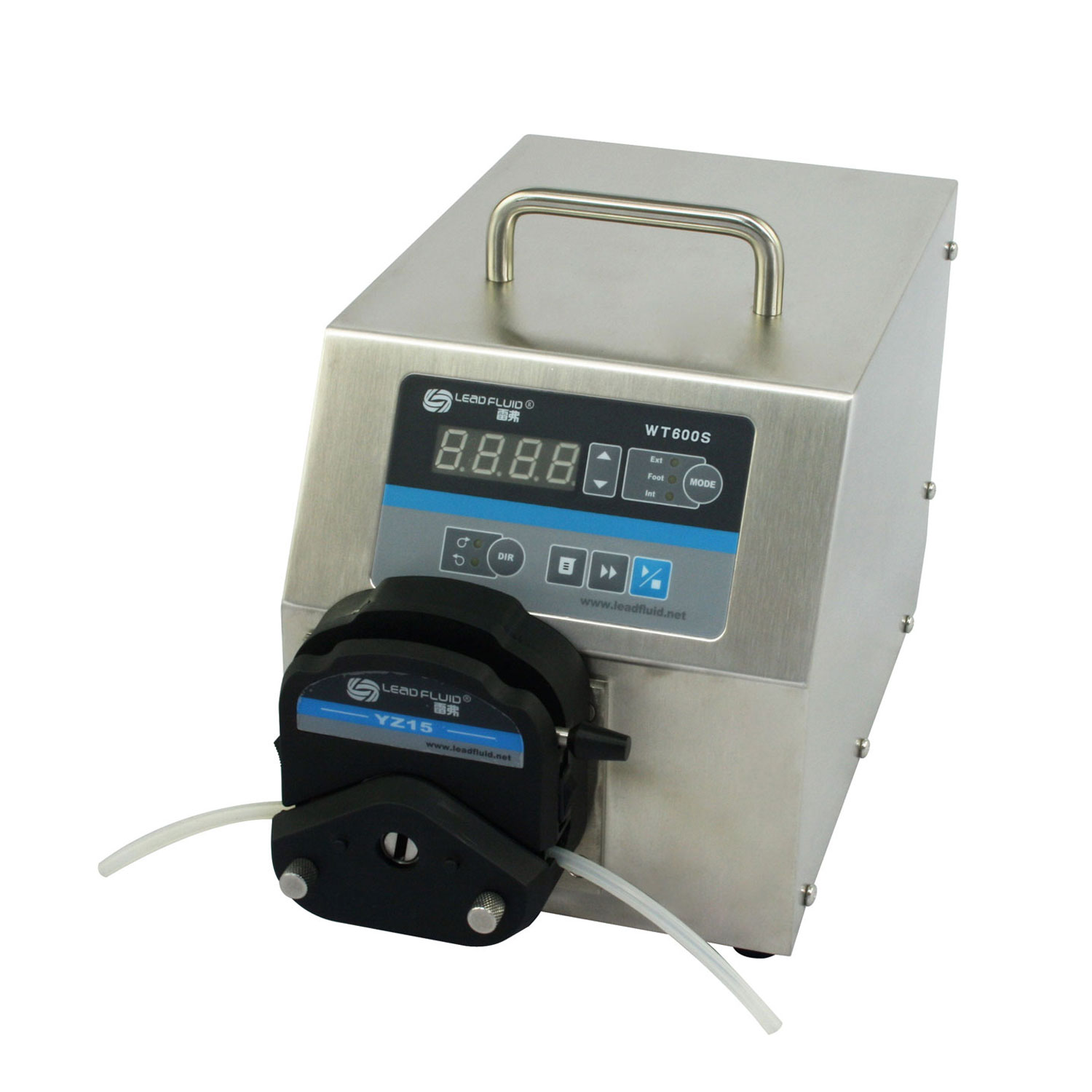

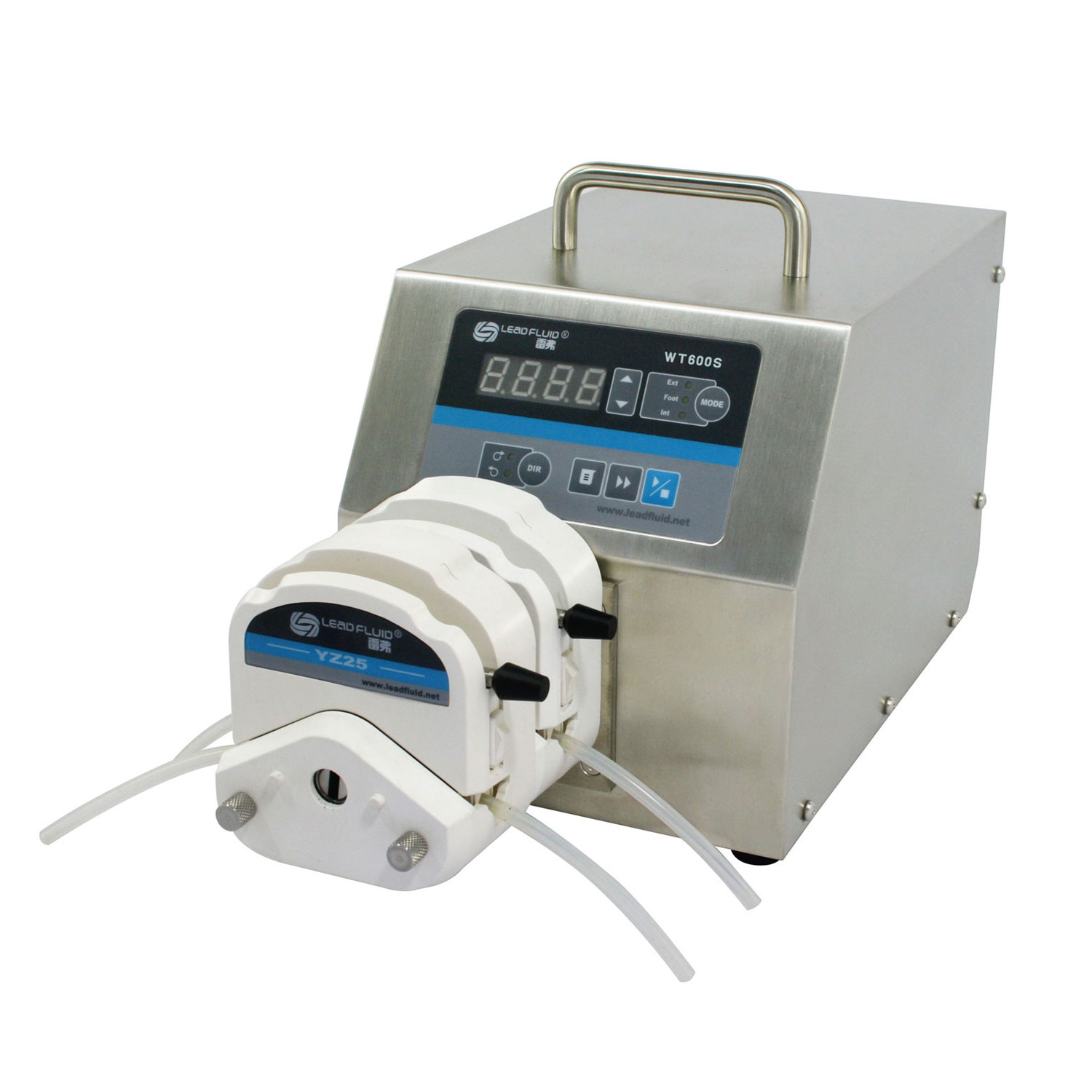

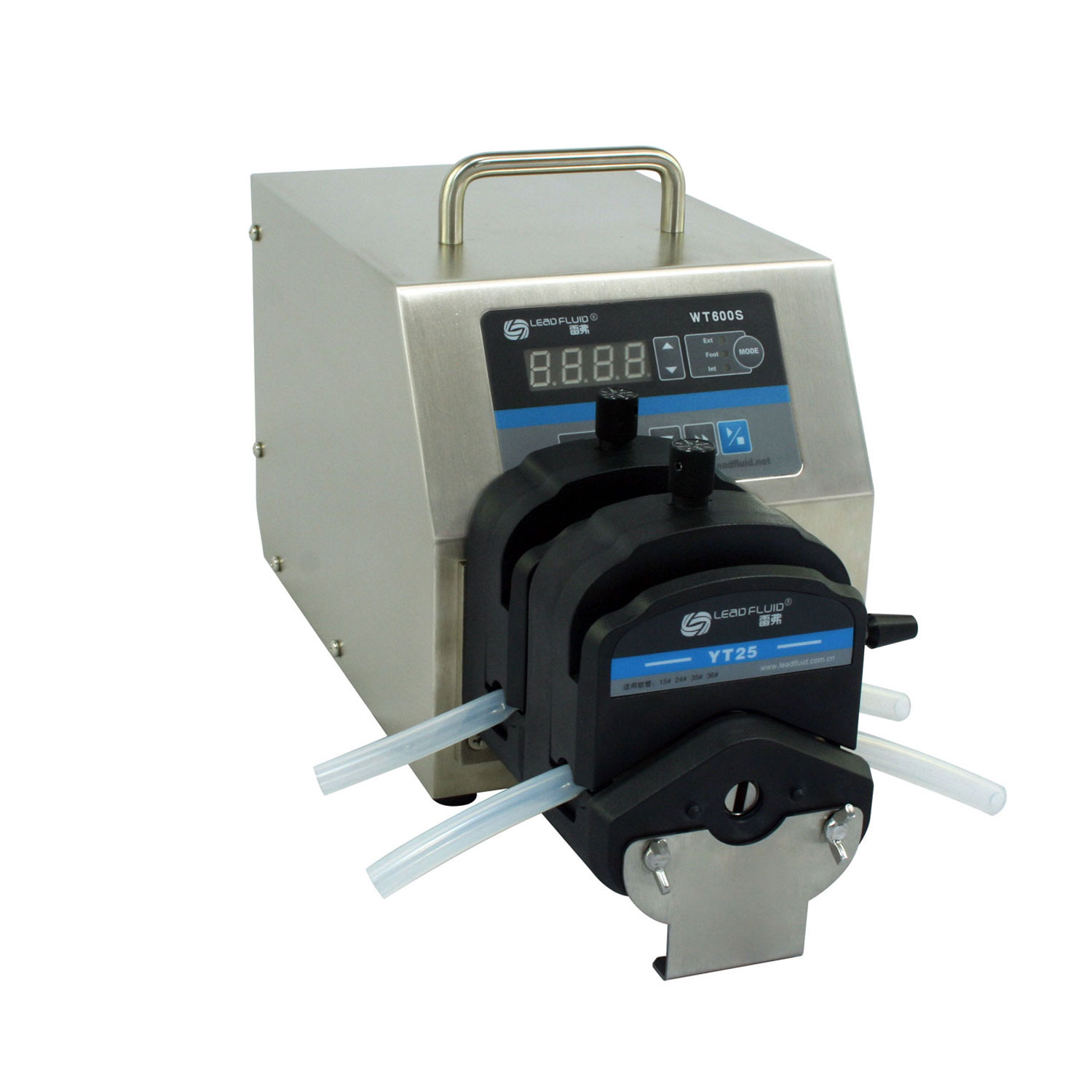

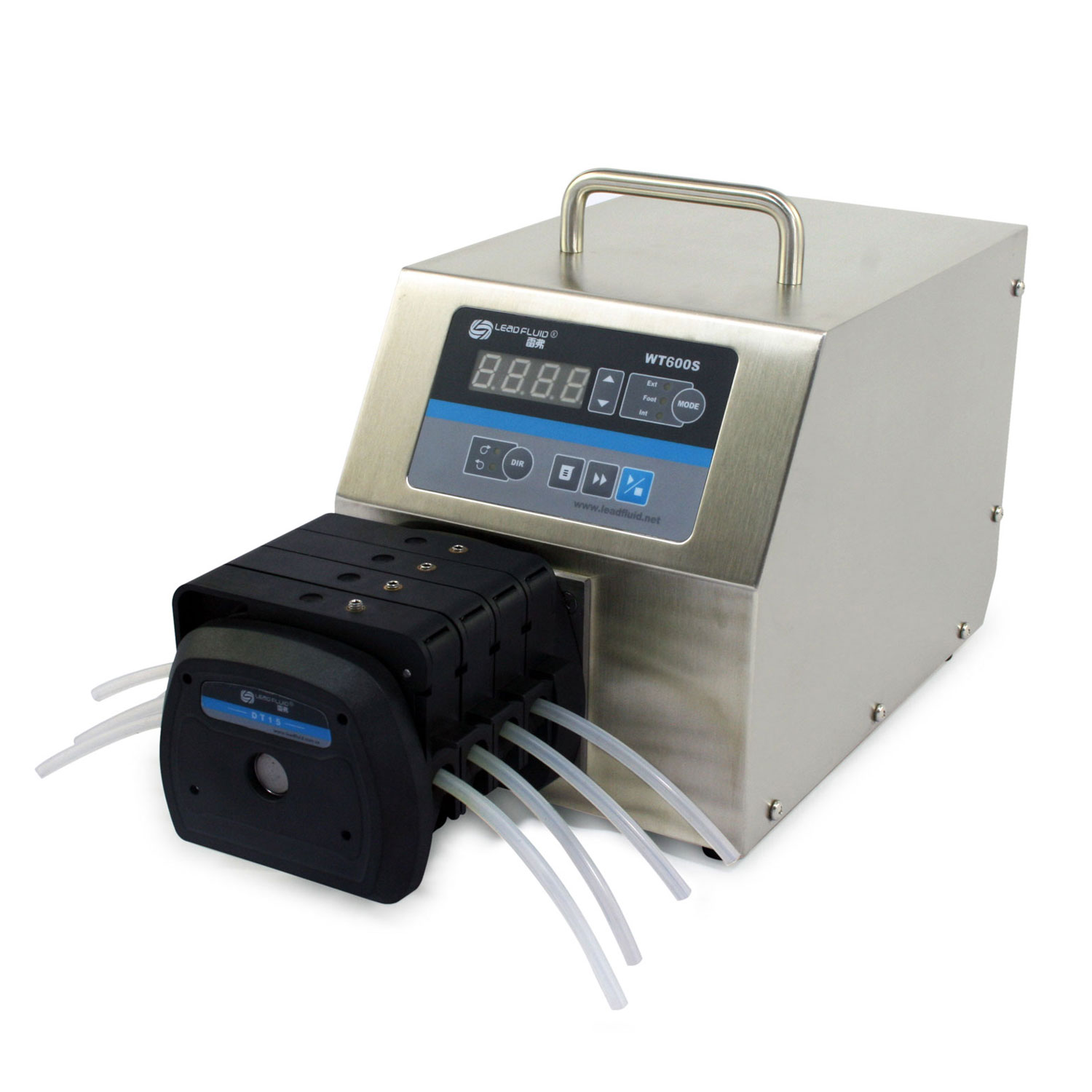

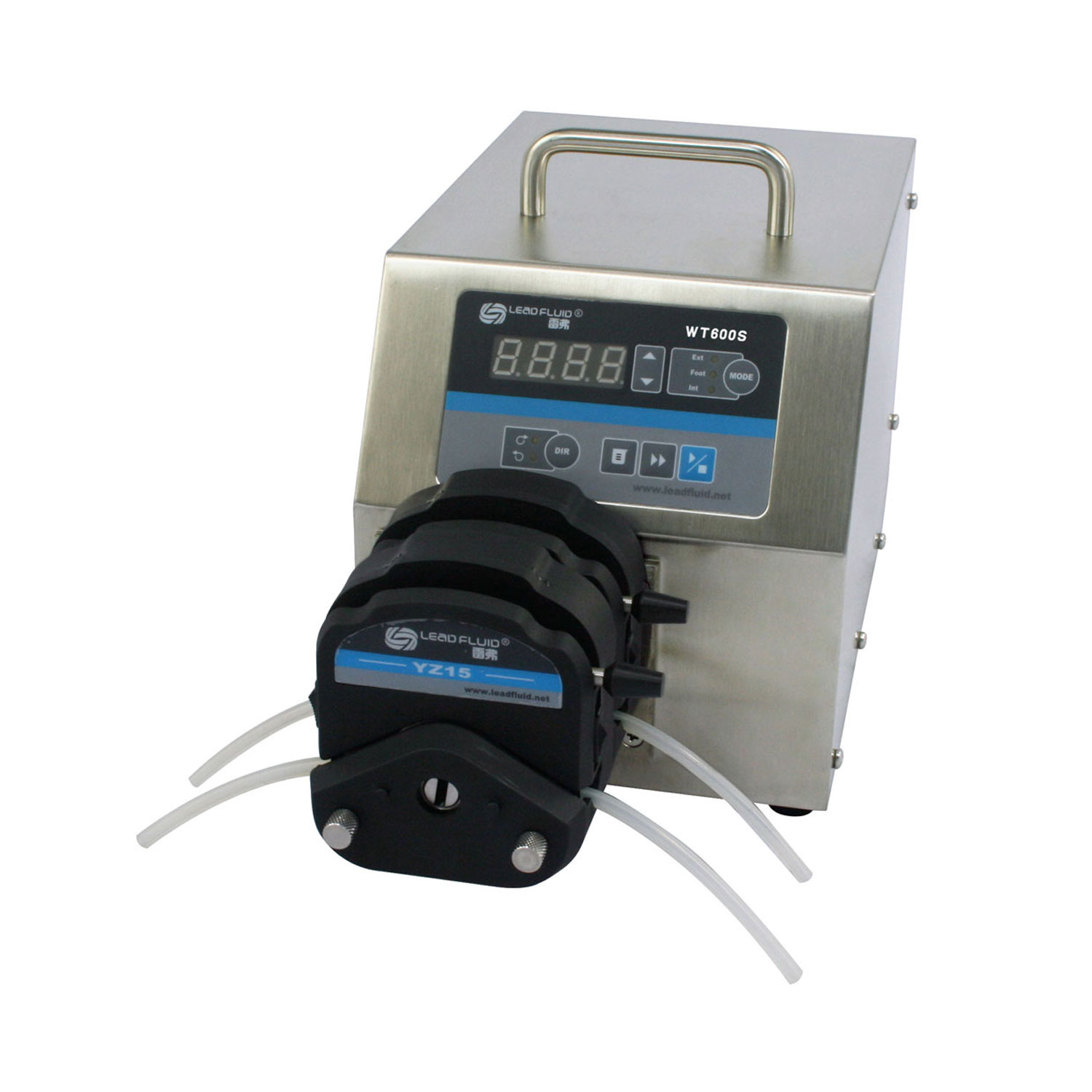

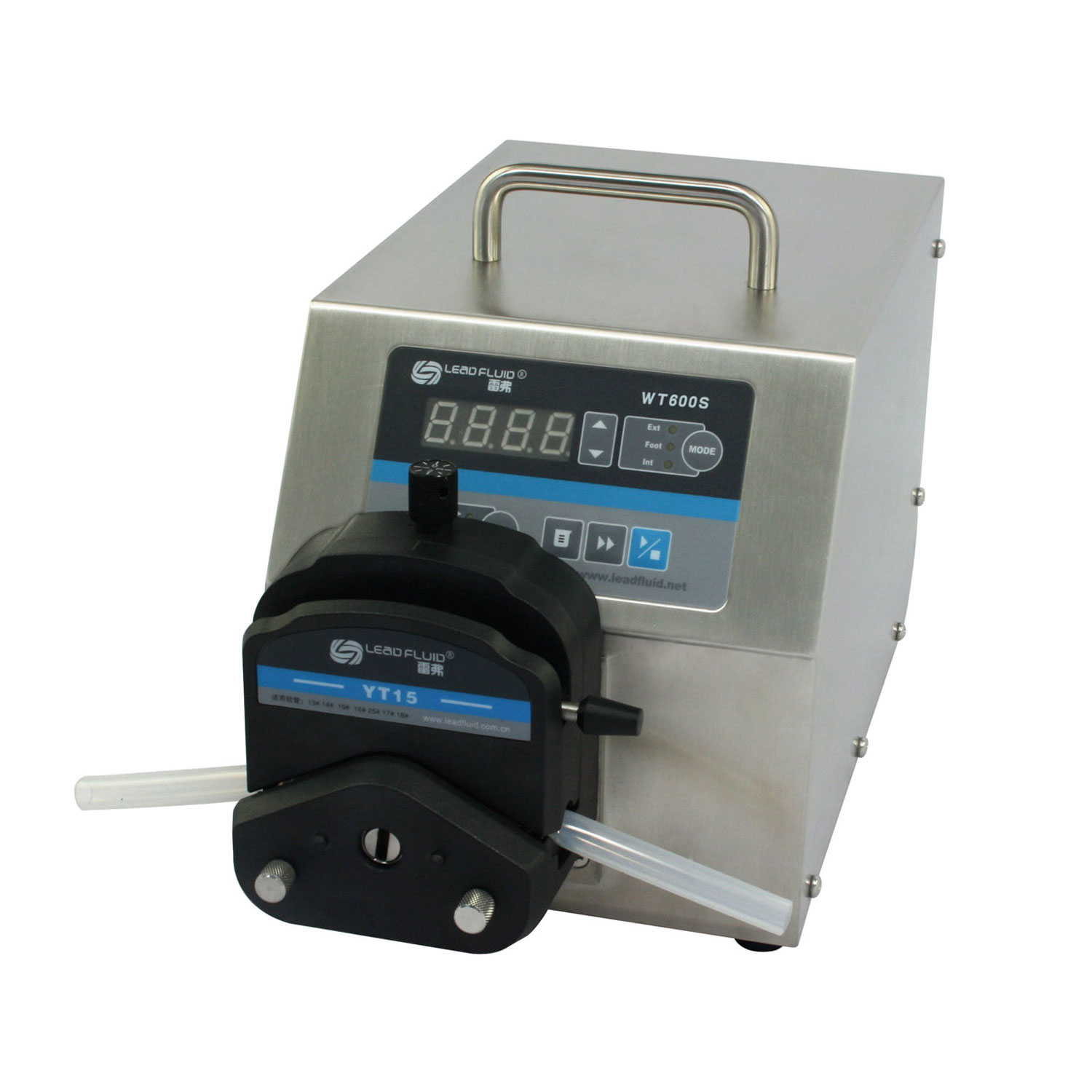

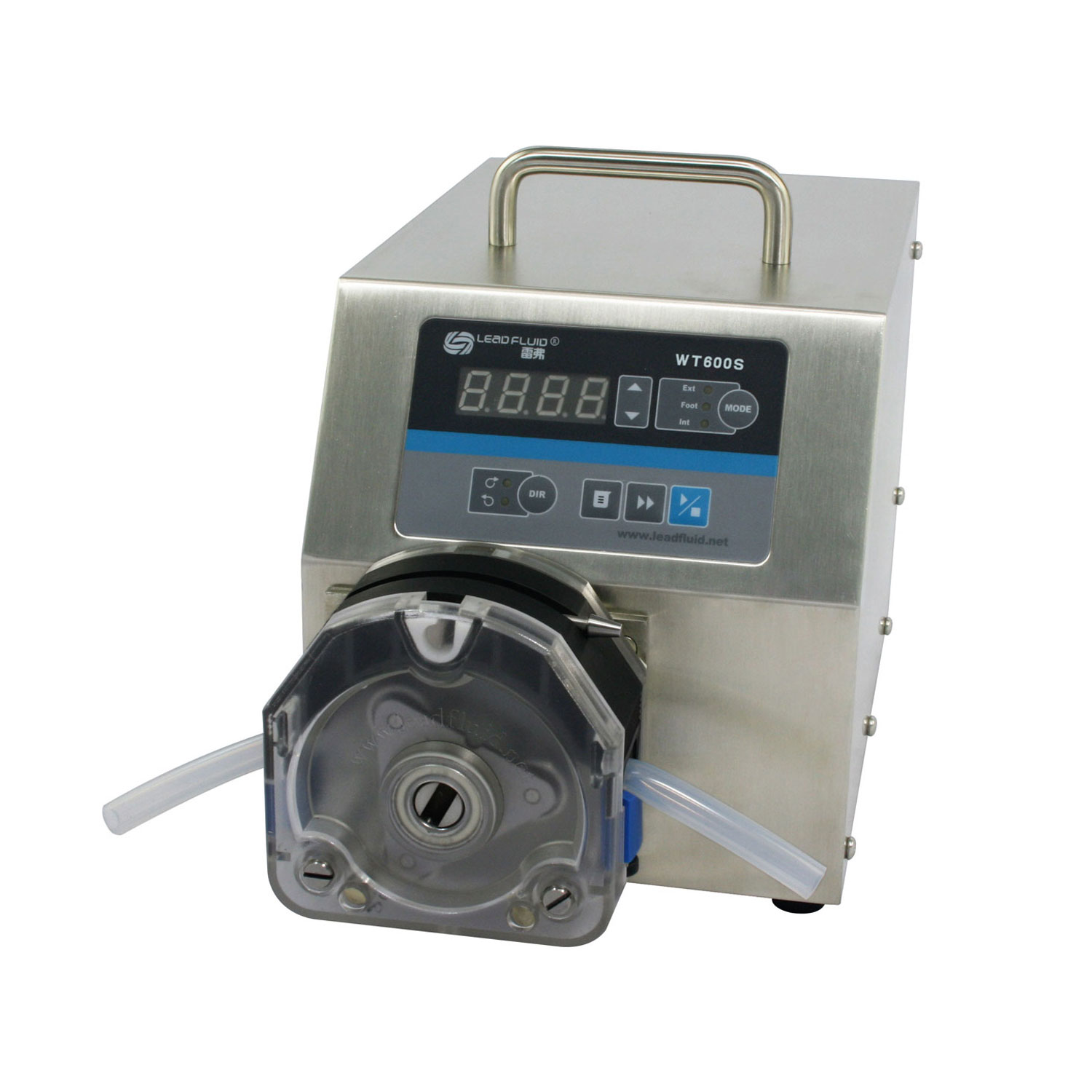

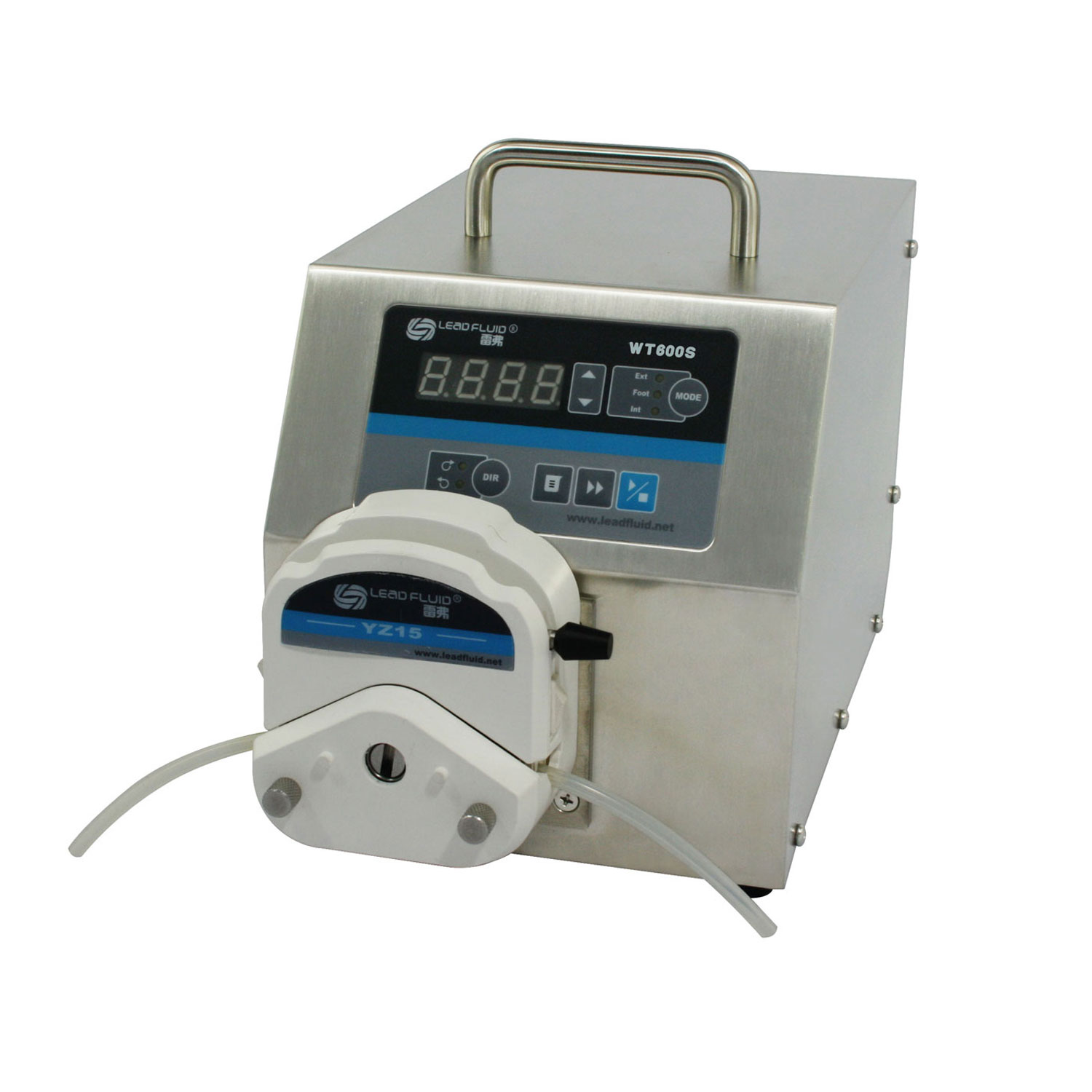

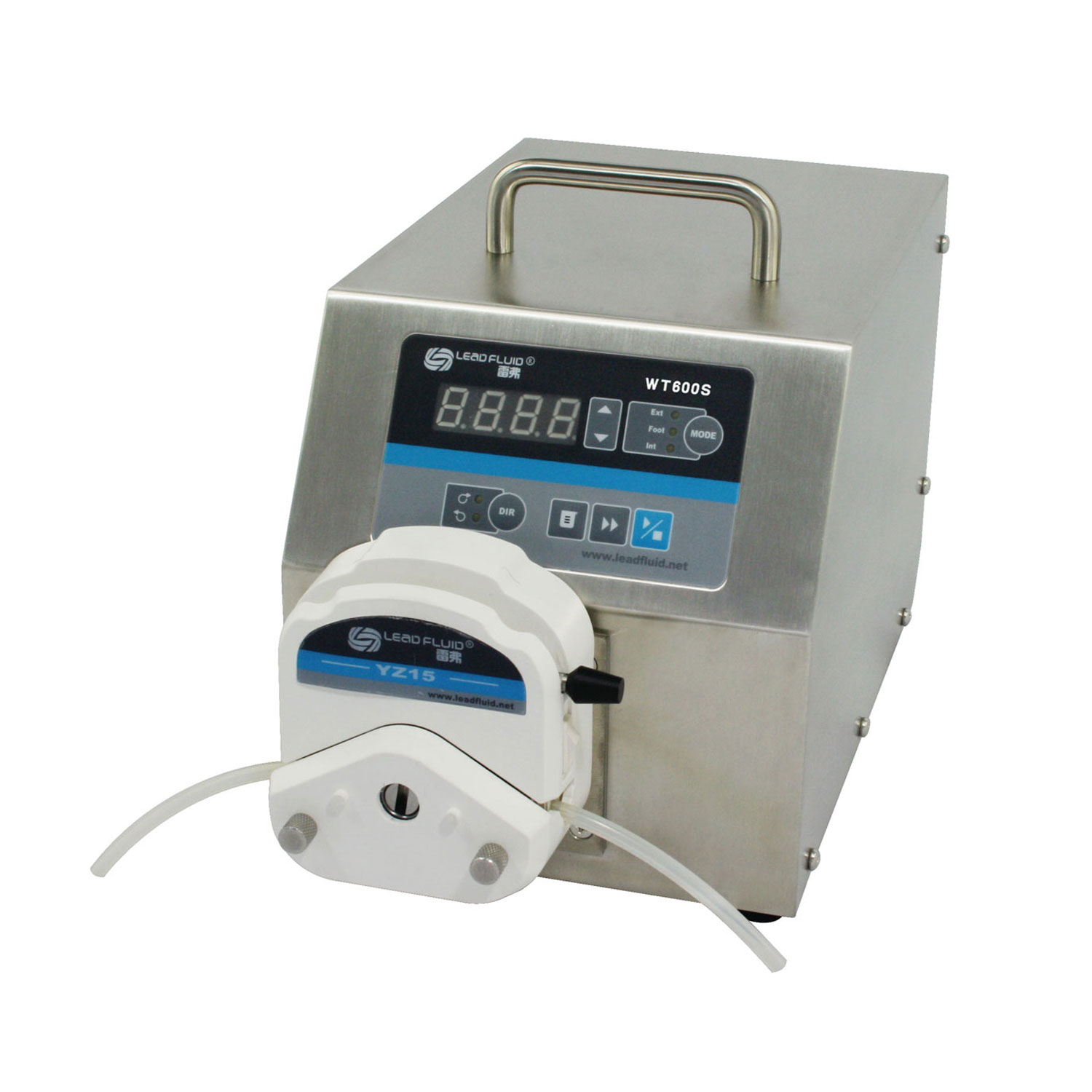

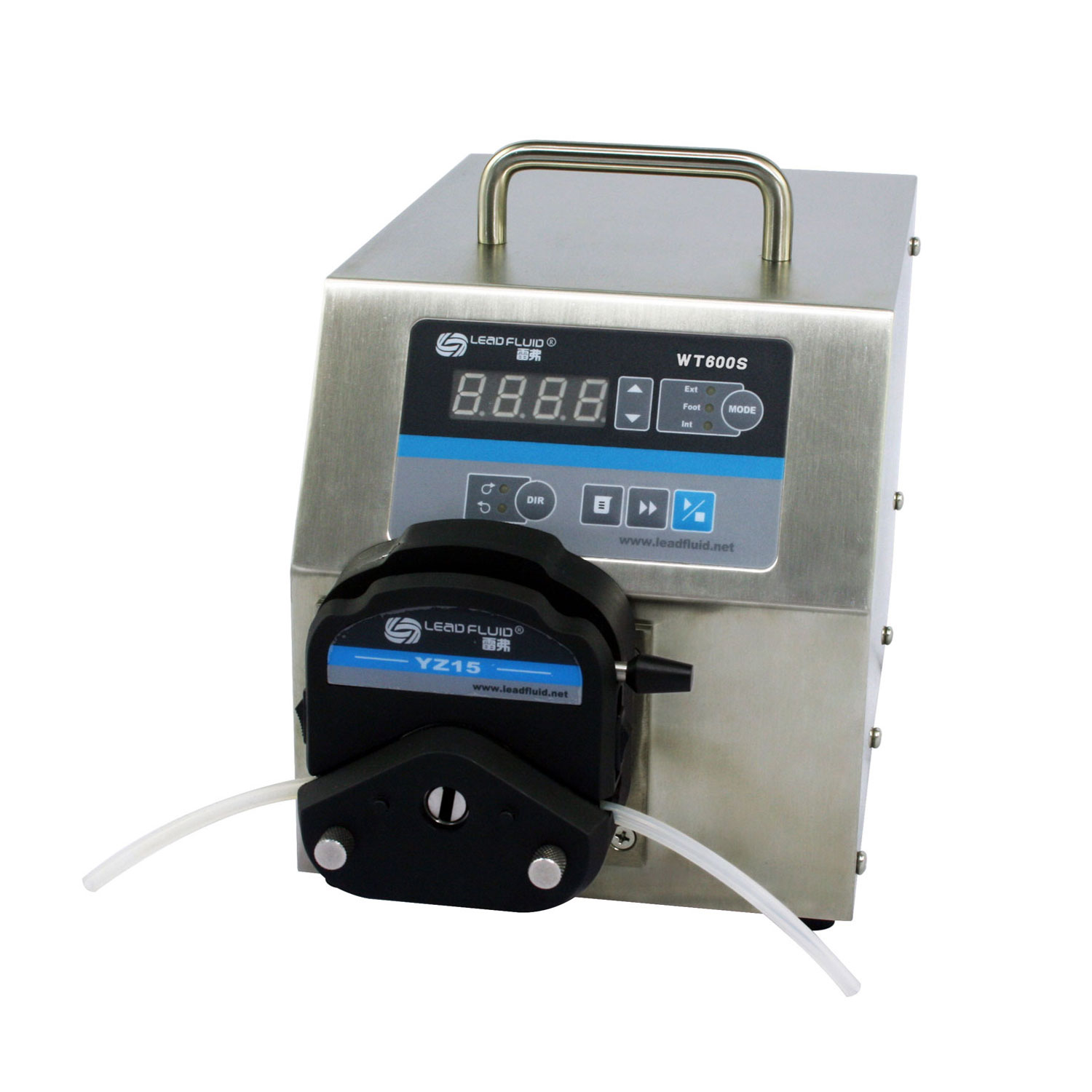

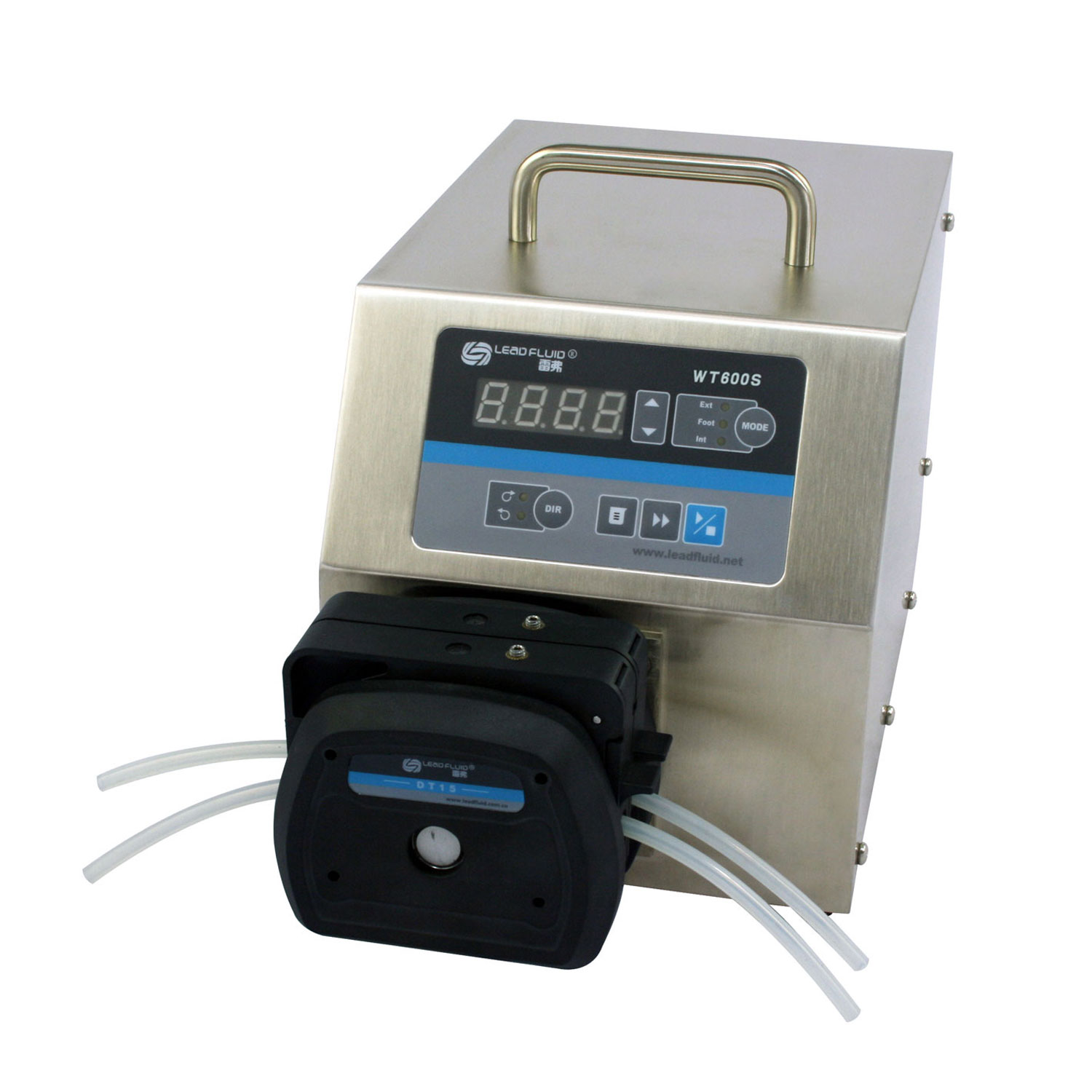

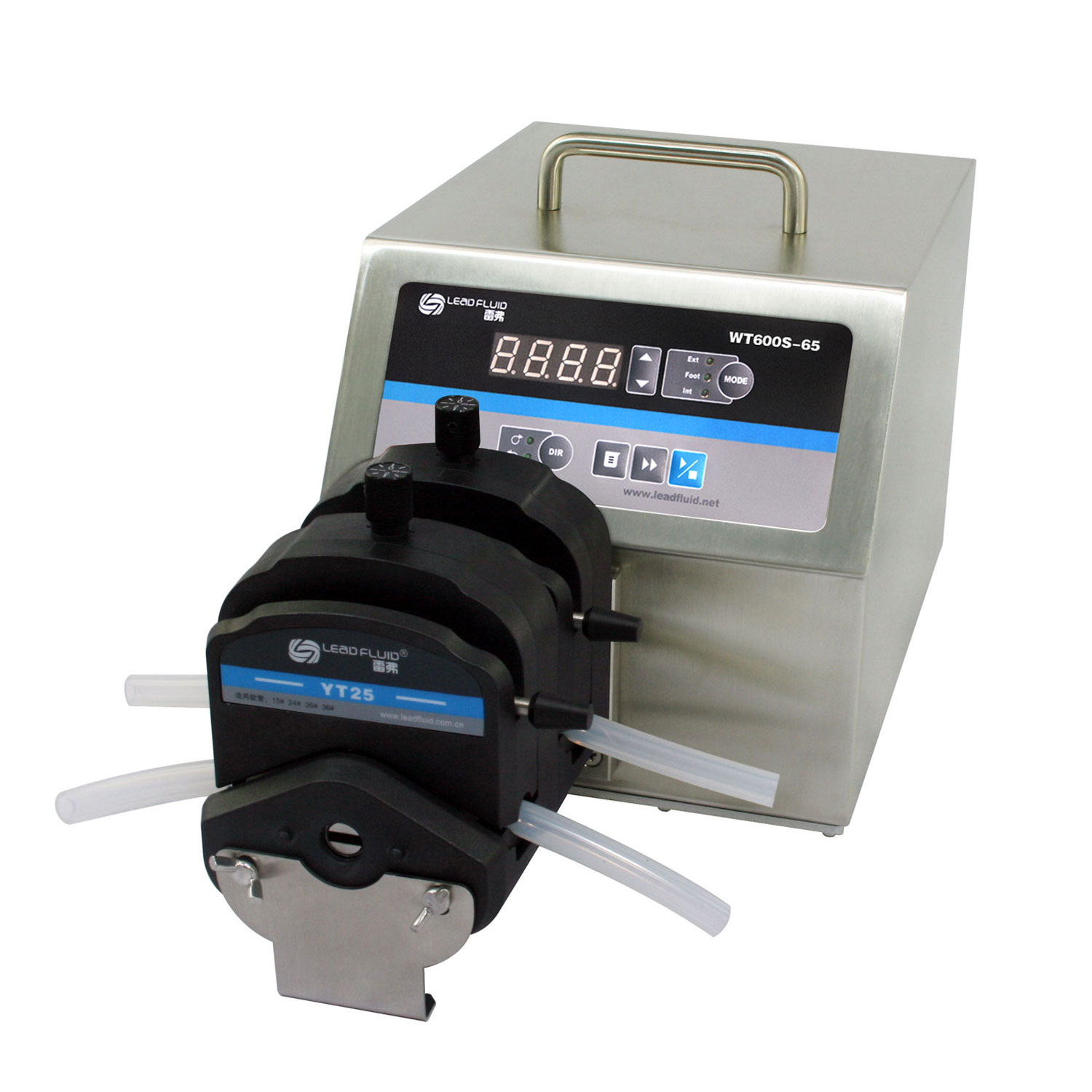

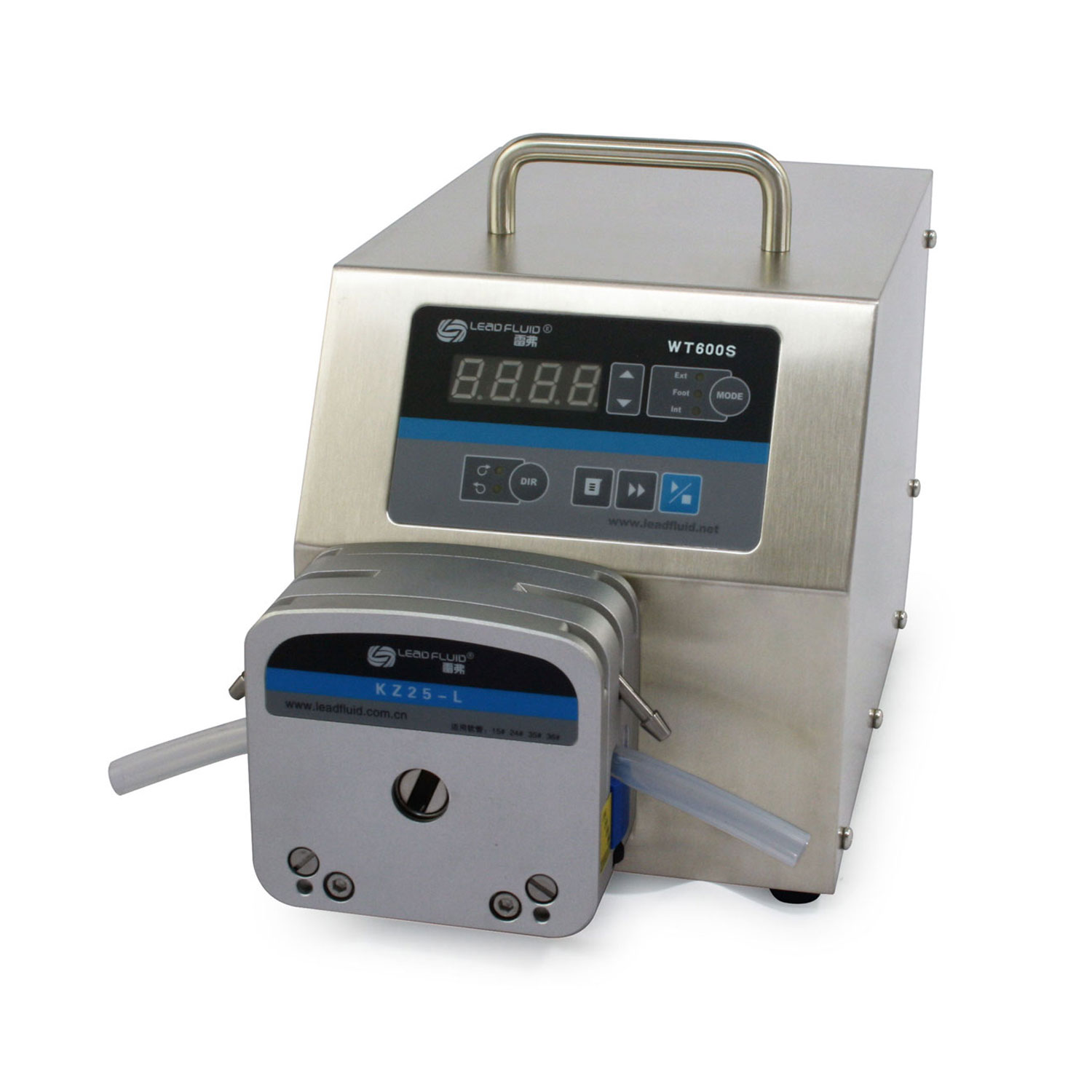

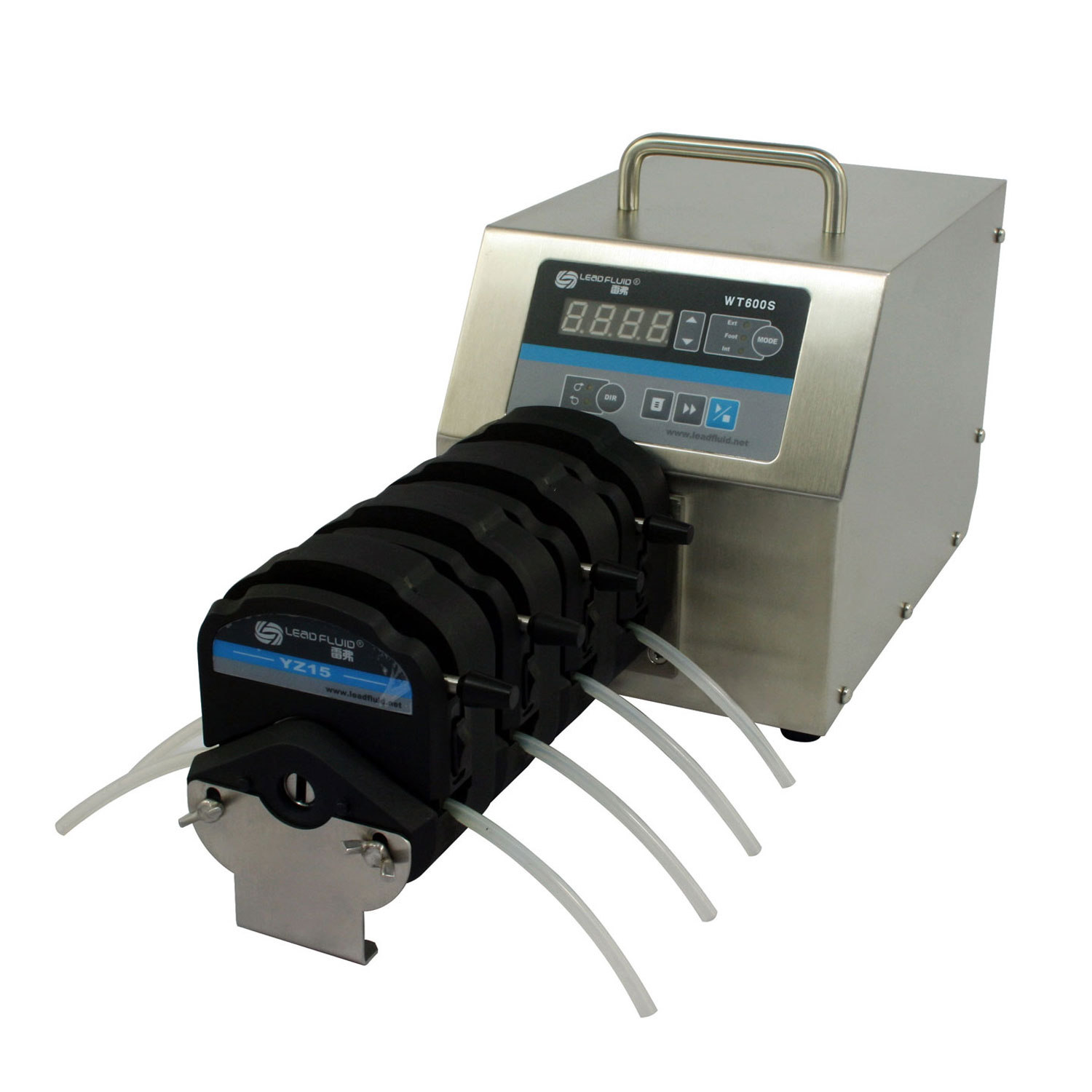

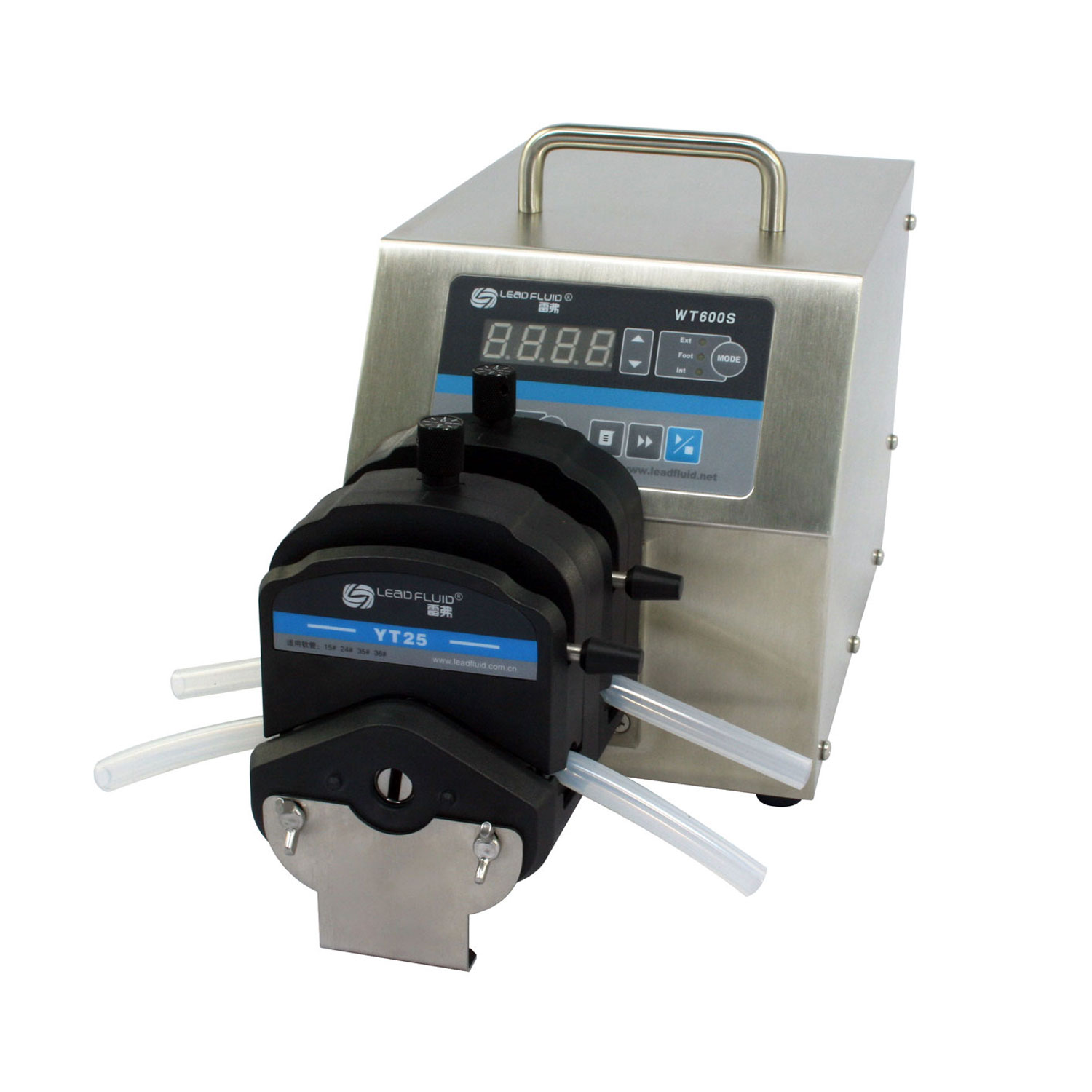

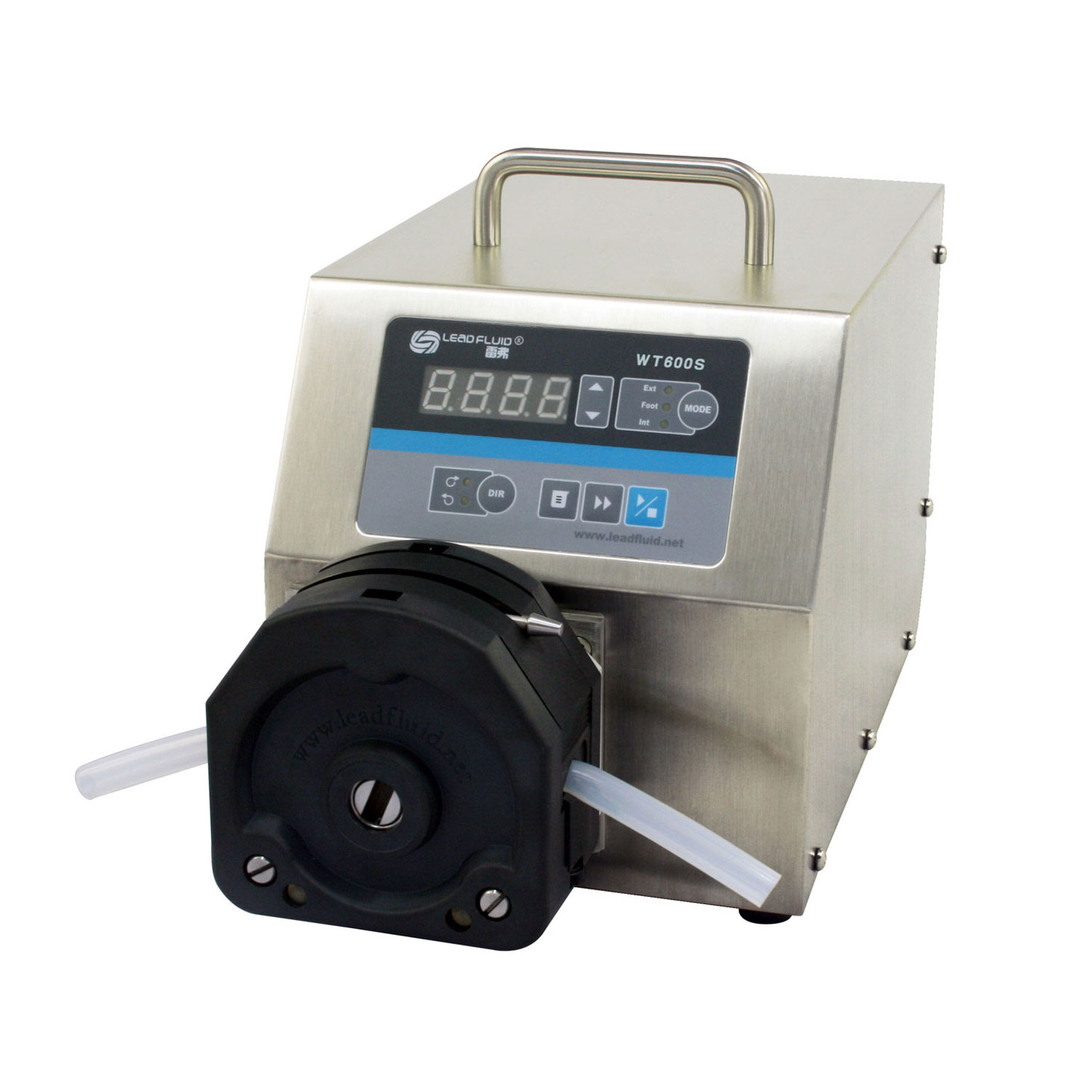

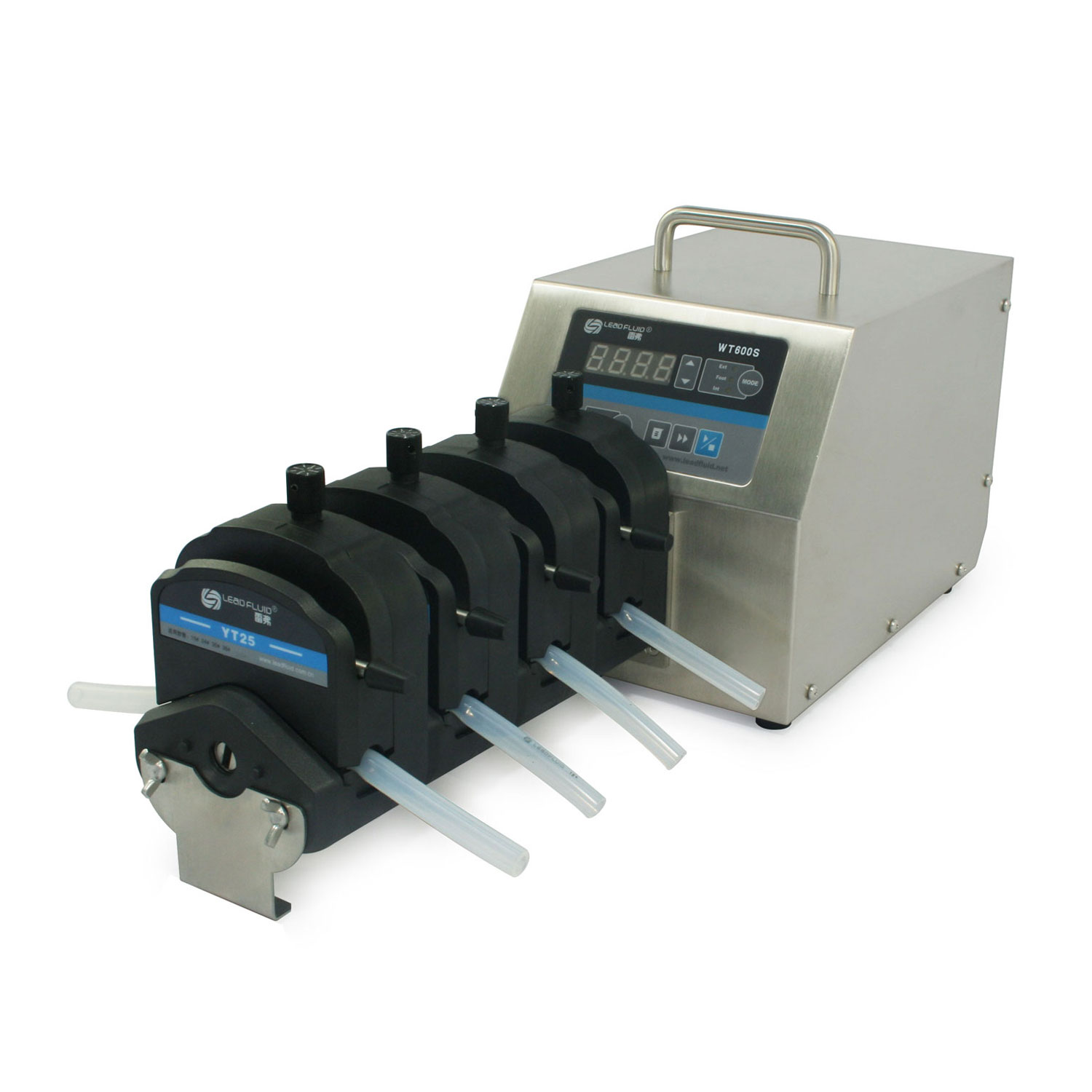

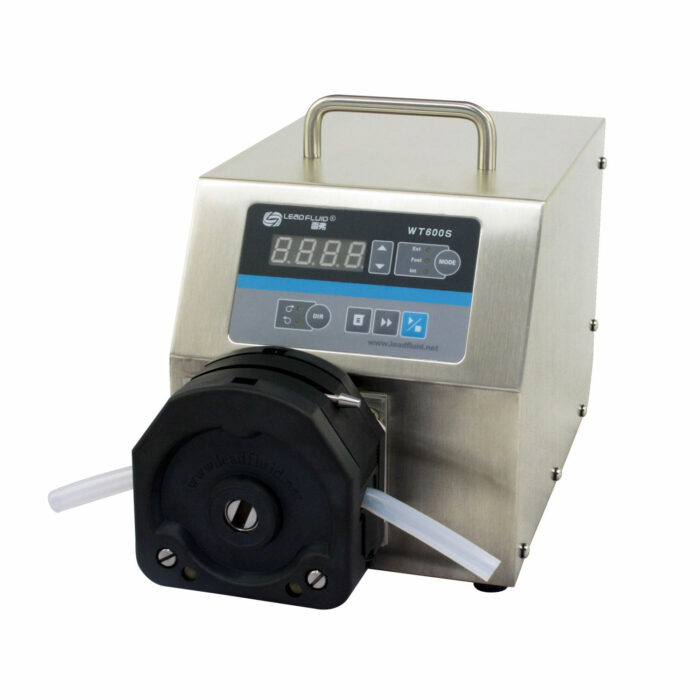

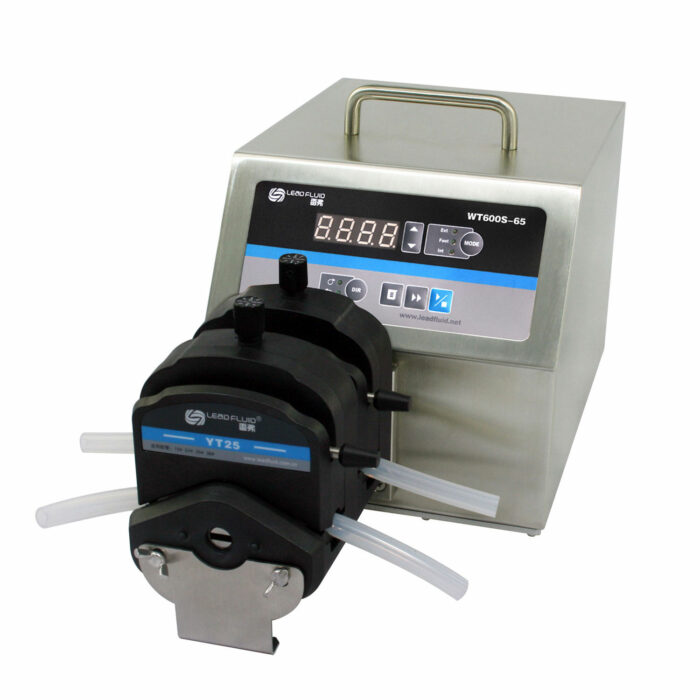

WT600S Variable-Speed Peristaltic Pump

Functions and Features

• Four digits LED indicator displays working speed.
• The LED indicator shows the working mode: internal control, external control or footswitch.
• Membrane keypad operation.
• Reversible direction, start/stop, adjust speed and full speed, state memory (power-off memory).
• Easy dispensing functions, it can repeat timing quantitative fluid dispensing.

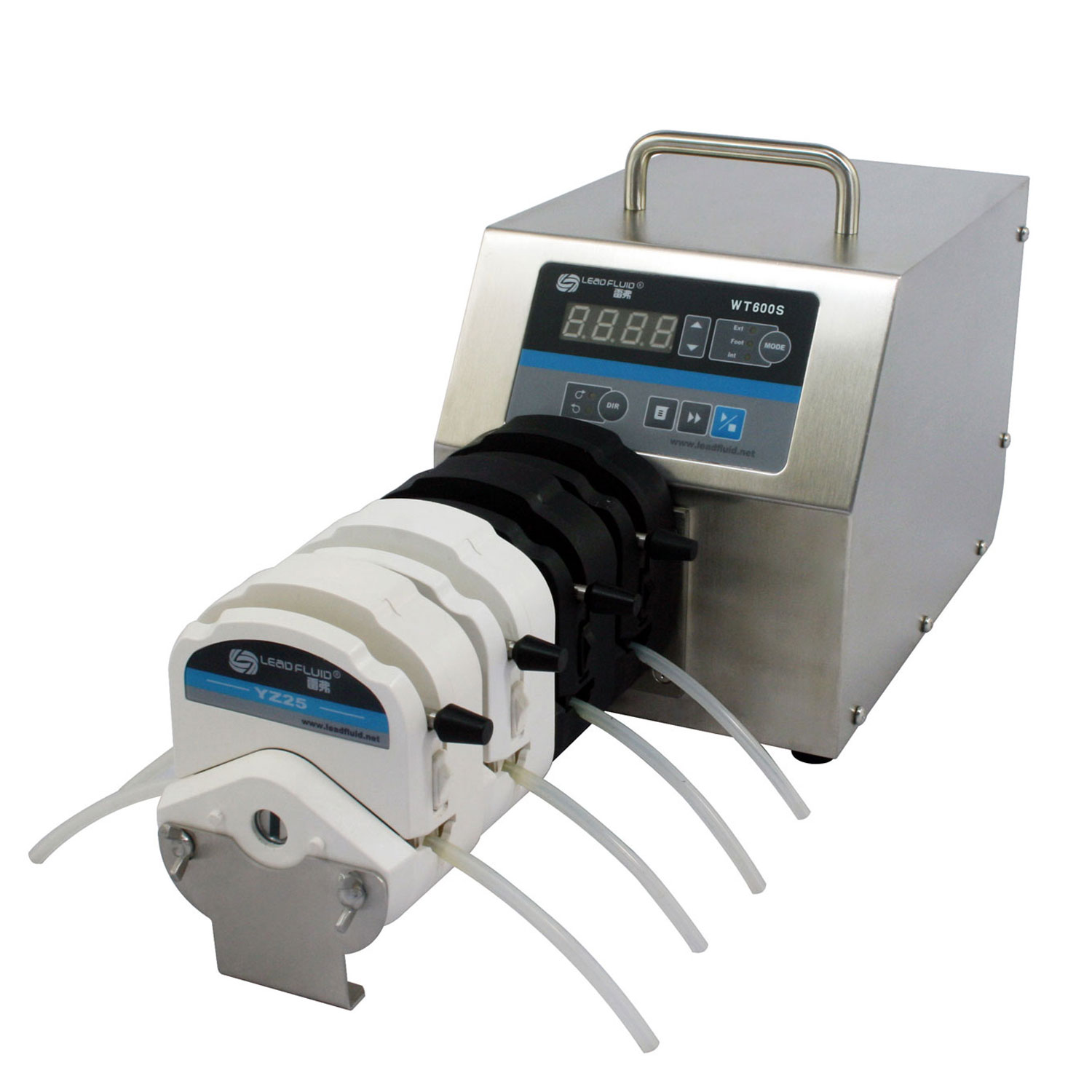

• Can drive multi-channels and various types of pump heads.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high –low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available ,easy to connect with external device.
• Optional footswitch or timer for dispensing fluid.

Specifications

• Flow range: 3-6000 mL/min
• Speed range: 30-600 rpm
• Speed resolution: 1 rpm
• Flow accuracy: 3%
• Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)
• Power consumption: <200W
• External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)
• Communication interface: RS485 MODBUS
• Operating condition: 0~40 °C
• Relative humidity: < 80%
• IP grade: IP31
• Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)
• Weight: 6.2kg (13.9 lbs)

WT600S Applicable Pump Heads and Tubings, Flow Parameters
